12160482 Metri-Pack 150 Series 4 Pin Connector for Gm
12160482 Metri-Pack 150 Series 4 Pin Connector for Gm
Description
Metri-Pack 150 Series 4 Pin Connector for Gm
These are connectors belong to D elphi
Application : Sensor - Exhaust Oxygen
Series : Metri-Pack 150 Series
Height :31.6mm
Width: 19.5mm
Length: 30.5mm
This set includes and you will get: : 1 housing +4 terminals+4 Seals
Terminal: Copper Alloy/Brass/Phosphor Bronze.
We can make the wire harness if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality with reasonable price ,If you need more, please contact with us to get cheaper price.
Specification
|
Item name |
12160482 Metri-Pack 150 Series 4 Pin Connector for Gm |
| P/N | 12160482 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

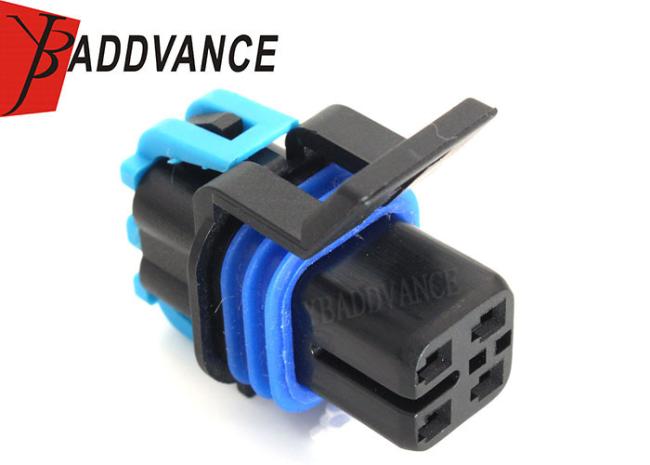

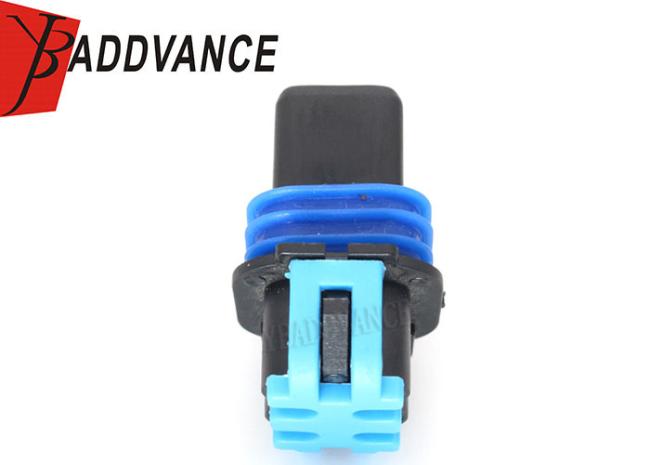

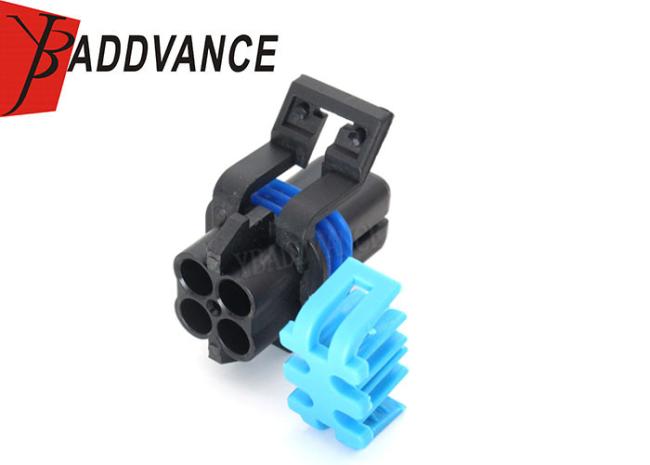

Product Picture Details
