1J0973813 1J0 973 813 6 Pin Male Waterproof Connector For VW
1J0973813 1J0 973 813 6 Pin Male Waterproof Connector For VW
Description
6 Pin Male Waterproof Connector For VW
Fit: A UDI V olkswagen S KODA SEAT Other VAG group cars
Width : 22 mm
Height: 16 mm
1 Row ,6 Way
Contents include:
1 x Connector
6 x Terminals
6 x Wire Seals
1 x Terminal Lock
We can make the wire harness if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality with reasonable price ,If you need more, please contact with us to get cheaper price.
Specification
|
Item name |
1J0973813 1J0 973 813 6 Pin Male Waterproof Connector For VW |
| P/N | 1J0973813 1J0 973 813 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

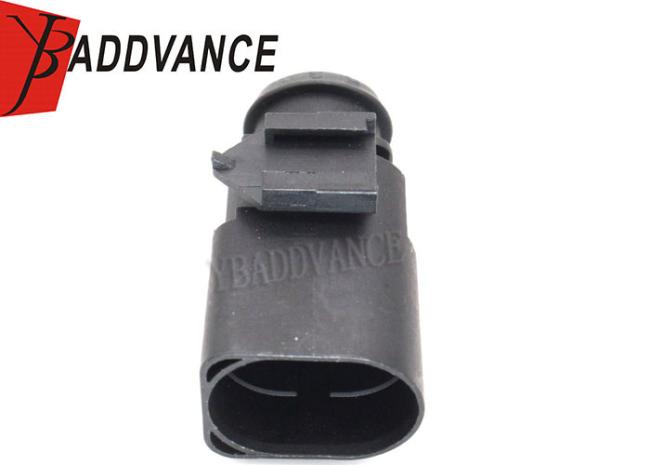

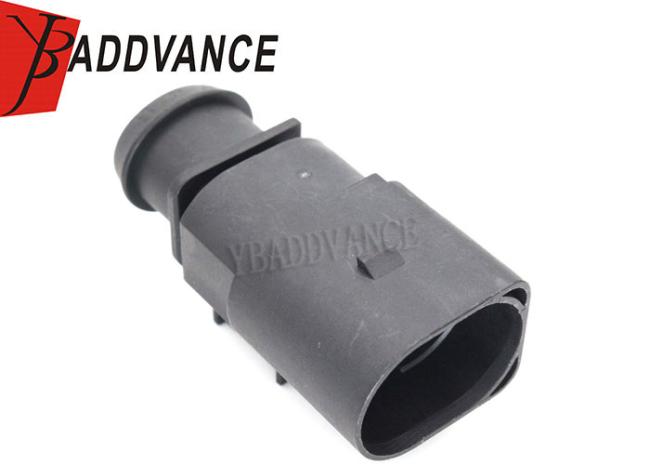

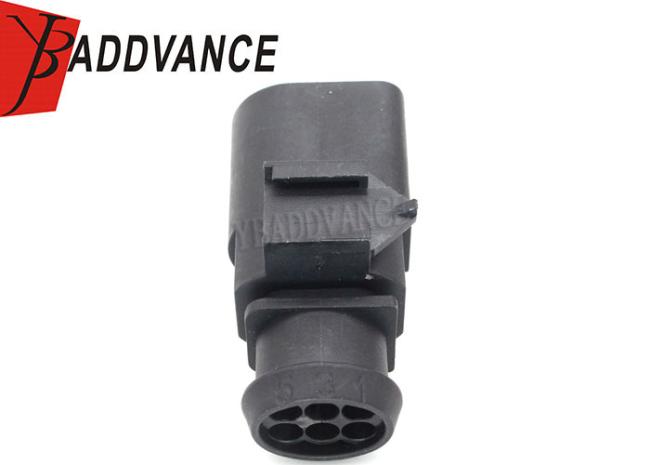

Product Picture Details
