6189-0132 Sumitomo 4 Pin Connector HW Sealed Series Senor Connector For Honda
6189-0132 4 Pin Sumitimo HW Sealed Series Senor Connector For Honda
Description
4 Pin Sumitimo HW Sealed Series Senor Connector For Honda
It is Sumitomo HW H onda B-Series O2 Sensor Connector
2 Row , 4 way
Series : HW Sealed Series
Height :26.9mm
Width : 22.1mm
Length : 27.8mm
Configuration : 1 Housing connector +4 Terminals +4 Seals
Mating part : 6181-0073
Materials: PBT
Temperature Range: -40°C to 125°C
The connectors have a maximum current capacity of 15 Amps
If you need more, please contact with us to get cheaper price.
Specification
|
Item name |
6189-0132 4 Pin Sumitimo HW Sealed Series Senor Connector For Honda |
| P/N | 6189-0132 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-55℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

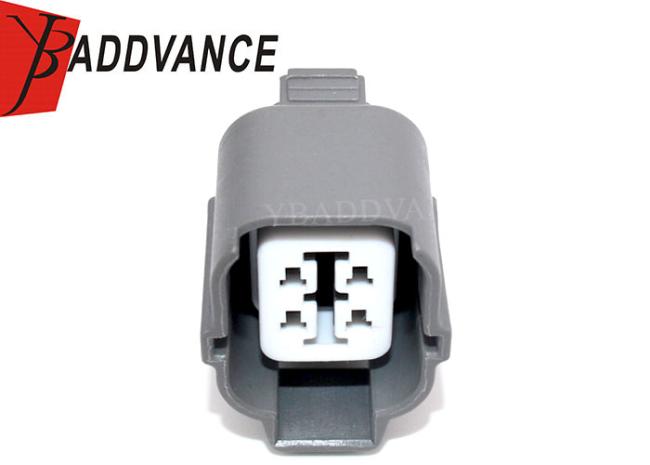

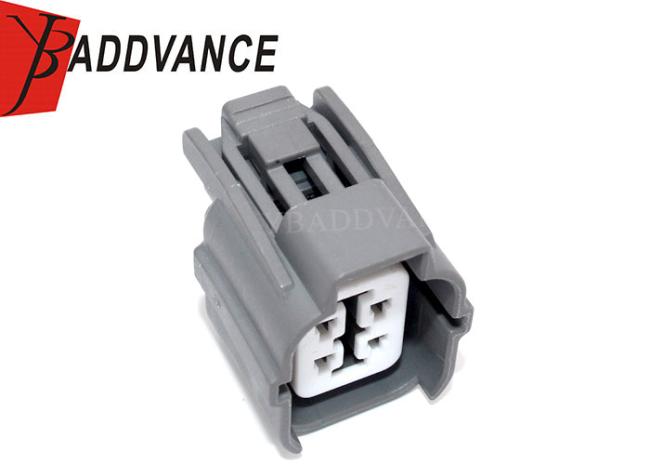

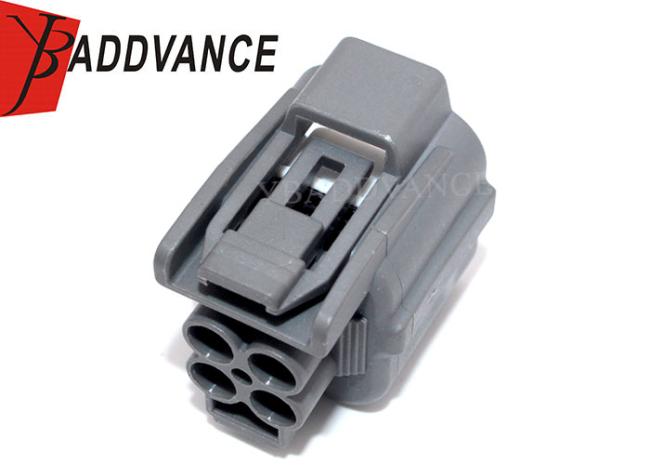

Product Picture Details
