6189-0481 3 Pin Sumitomo Automotive Connectors B-Series MAP TPS Ignition Coil Connector
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6189-0481 3 Pin Sumitomo B-Series MAP TPS Ignition Coil Connector For Honda
Description
3 Pin Sumitomo B-Series MAP TPS Ignition Coil Connector For Honda
It is Sumitomo B-Series MAP, TPS Connector Sensor Connector
1 Row , 3 way
Including :
3 Pin Housing Connector
Secondary Lock
3 Wire Terminals
3 Wire Seals
Materials: PBT
Other part number : 6189-0154
Temperature Range: -40°C to 125°C
The connectors have a maximum current capacity of 15 Amps
If you need more, please contact with us to get cheaper price.
Specification
|
Item name |
6189-0481 3 Pin Sumitomo B-Series MAP TPS Ignition Coil Connector For Honda |
| P/N | 6189-0481 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

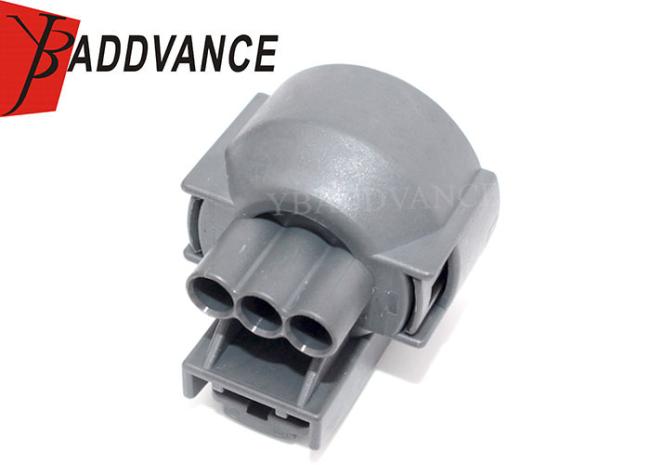

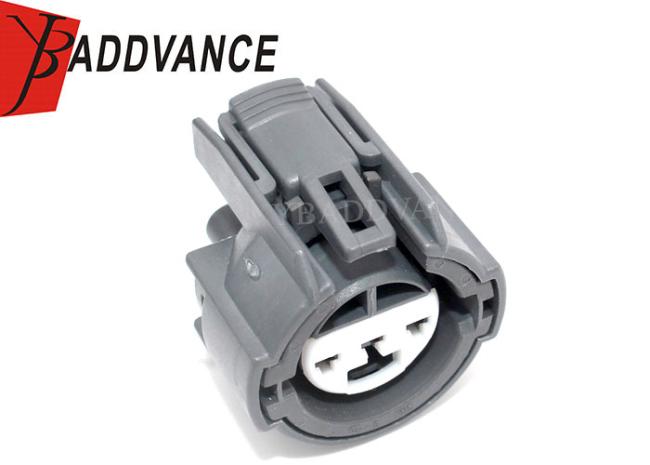

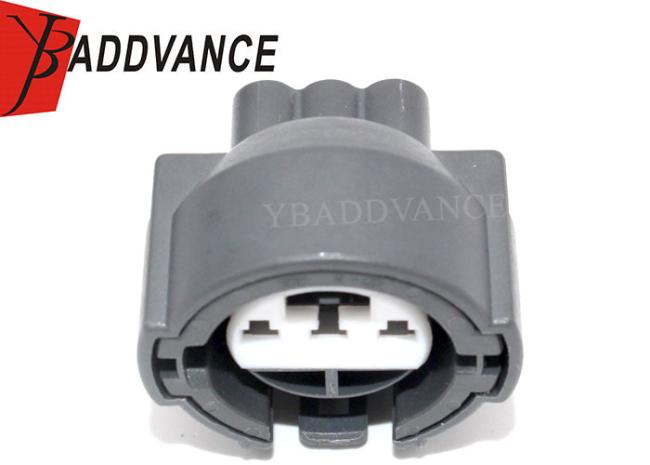

Product Picture Details
