Grey Deutsch Automotive Connectors 6 Way Female TE Connectivity DT06-6S
6 Way Female TE Connectivity Deutsch Engine Connector DT06-6S
Description
6 Way Female TE Connectivity Deutsch Engine Connector
Deutsch DT series connectors provide superior electrical properties and weather resistance in an attractive, economical and user friendly product
Centerline (Pitch) :4.5 mm
Height:30.94 mm
Width: 22.63 mm
Submersion:
Properly wired and mated connection will withstand immersion under 3 feet of water without loss of electricity or leakage.
Fluid Resistance: Fluid resistance to most fluids used in industrial applications.
Thermal Cycle: No cracking, chipping or leaking after 20 test cycles from operating temperature.
For the DT Seriese female connector , we have 2 types terminals , please check the above pictures
DT series connectors accept 16size pins and sockets with 13amp continuous current capacity and accommodate wire sizes 12AWG to 20AWG.
Specification
|
Item name |
6 Way Female TE Connectivity Deutsch Engine Connector DT06-6S |
| P/N | DT06-6S |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Deutsch Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

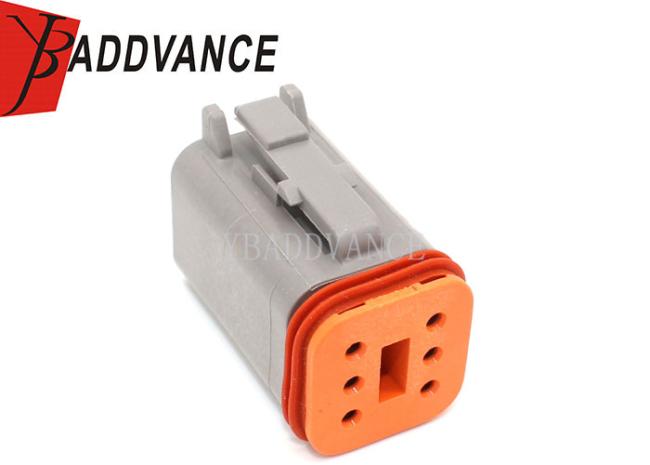

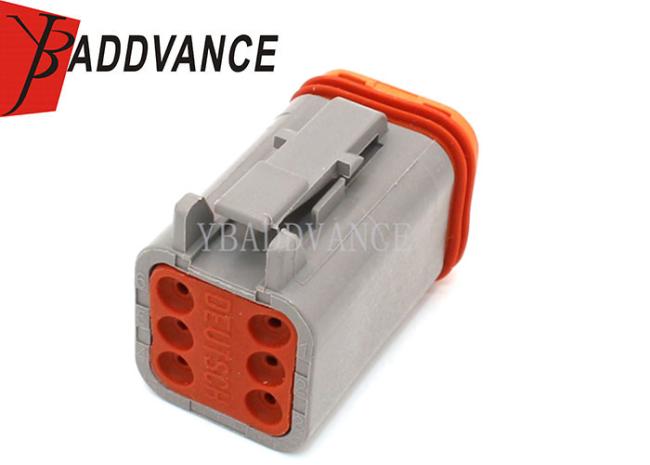

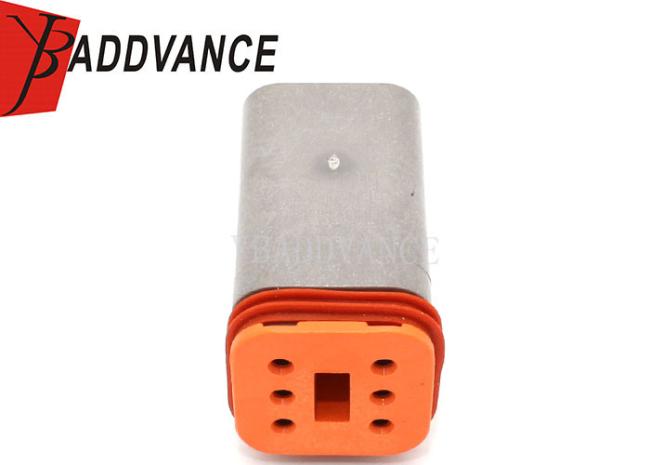

Product Picture Details
