6 Pin Female Sumitomo DL Series Accelerator Throttle Pedal Connector 6195-0021
6 Pin Female Sumitomo DL Series Accelerator Throttle Pedal Connector 6195-0021
Description
6 Pin Female Sumitomo DL Series Accelerator Throttle Pedal Connector
It is Accelerator Throttle Pedal Connector
2 Row , 6 way
Series : DL 090 (2.3mm )Sealed
Length :28mm
Width : 28mm
Height : 24.3mm
Mating part : 6195-0024
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: +125°C
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
6 Pin Female Sumitomo DL Series Accelerator Throttle Pedal Connector 6195-0021 |
| P/N | 6195-0021 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

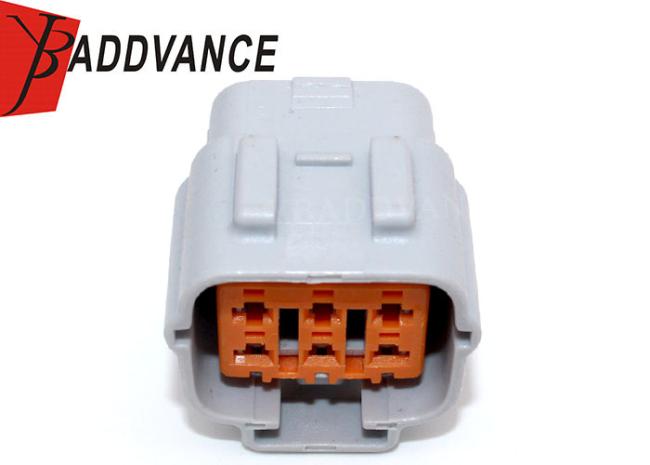

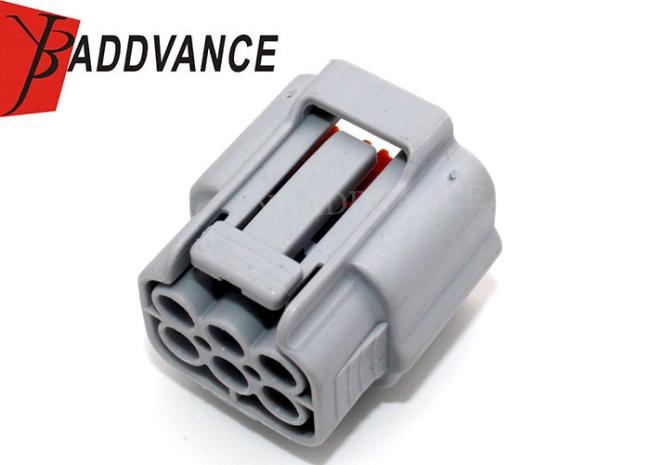

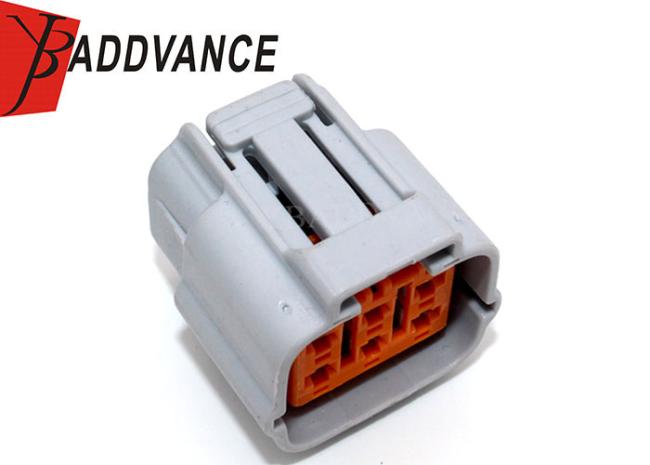

Product Picture Details
