3 Pin Male Sumitomo TS 090 Sealed Alternator Connector 6188-0282
3 Pin Male Sumitomo TS 090 Sealed Alternator Connector 6188-0282
Description
3 Pin Male Sumitomo TS 090 Sealed Alternator Connector
It is TS 090 Sealed Alternator Male Connector For T oyota L exus
Housing:PBT+G,PA66+GF
Terminal:Copper Alloy,Brass,Phosphor Bronze.
Length :38.2mm
Width : 26.3mm
Height : 18.9mm
Mating Parts : 6189-0443
Series : TS 090 Sealed (2.3mm)
It come with the terminals and seals
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: +125°C
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
If you need large quantity , please contact us get the lower price
Specification
|
Item name |
3 Pin Male Sumitomo TS 090 Sealed Alternator Connector 6188-0282 |
| P/N | 6188-0282 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

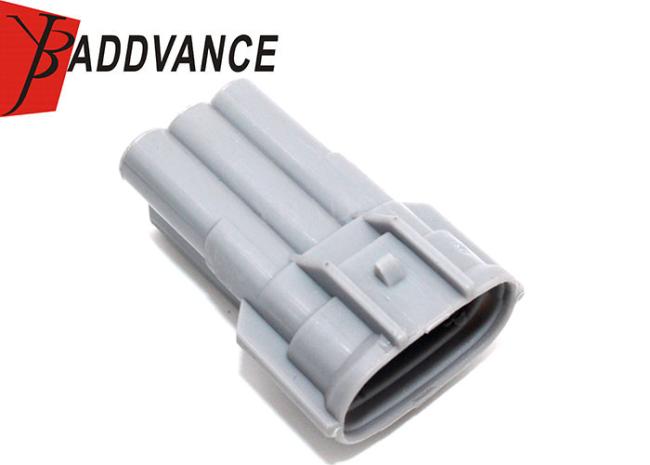

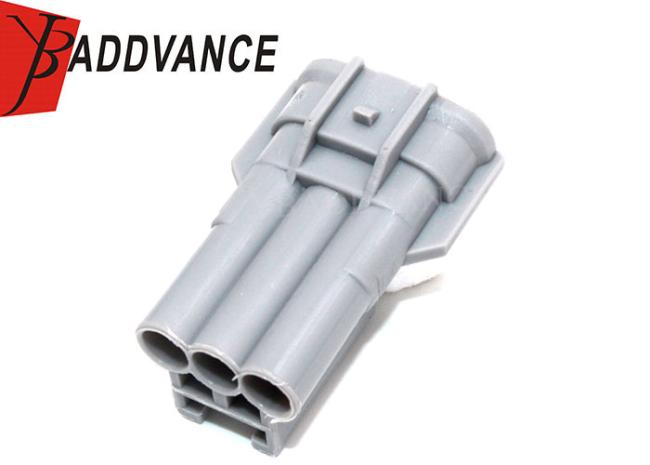

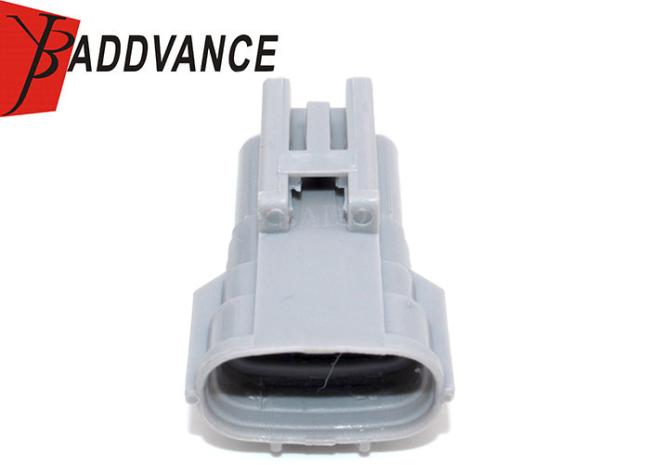

Product Picture Details
