Black Sumitomo Sealed Connectors / 2 Pin Connector Female 6189-0890 6918-1835
2 Way Sumitomo HX Sealed Series Female Connector 6189-0890 6918-1835
Description
2 Way Sumitomo HX Sealed Series Female Connector
Connector with Middle Slot/Rib. Please check the photos to ensure that it fits your application
Width :17.6 mm
Height: 15.4 mm
Length :24.5 mm
Mating Part : 6188-0589
Related Parts : Lock : 6918-1835
Width :9.4mm
Height : 7.5 mm
It come with 1 housing +2 wire seals+2 terminals+ 1 Lock
Material
Housing:PBT+G,PA66+GF;
Terminal:Copper Alloy,Brass,Phosphor Bronze.
Specification
|
Item name |
2 Way Sumitomo HX Sealed Series Female Connector 6189-0890 6918-1835 |
| P/N | 6189-0890 6918-1835 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

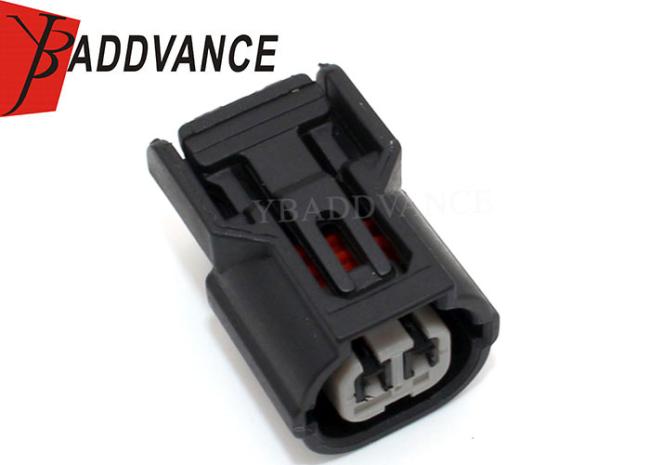

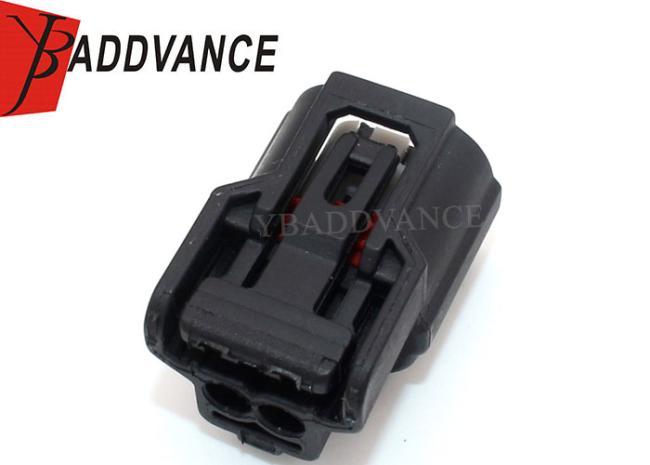

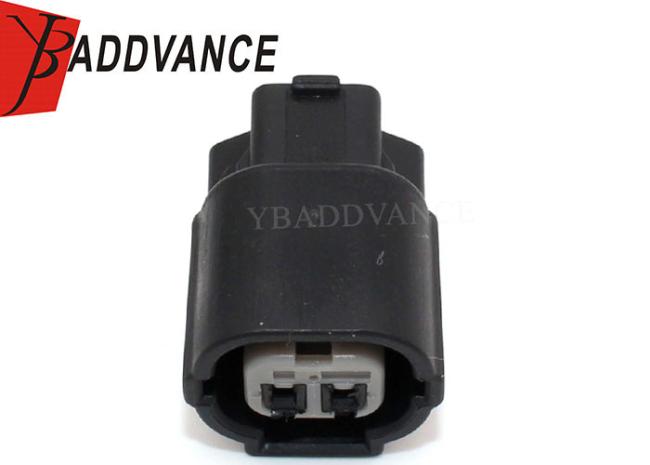

Product Picture Details
