2 Hole Orange Automotive HX Sealed Female Connector 6189-0891
2 Hole Orange Automotive HX Sealed Female Connector 6189-0891
Description
2 Hole Orange Automotive HX Sealed Female Connector
Connector with Bottom Slot/Rib. Please check the photos to ensure that it fits your application
Series : HX 040 1.0 mm sealed
Mating Part : 6188-0590
HX Connector for 07-10 H onda Taillight
It come with 1 housing +2 wire seals+2 terminals+ 1 Lock
Width :17.6 mm
Height: 15.4 mm
Length :24.5 mm
Material
Housing:PBT+G,PA66+GF;
Terminal:Copper Alloy,Brass,Phosphor Bronze.
Specification
|
Item name |
2 Hole Orange Automotive HX Sealed Female Connector 6189-0891 |
| P/N | 6189-0891 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Orange |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

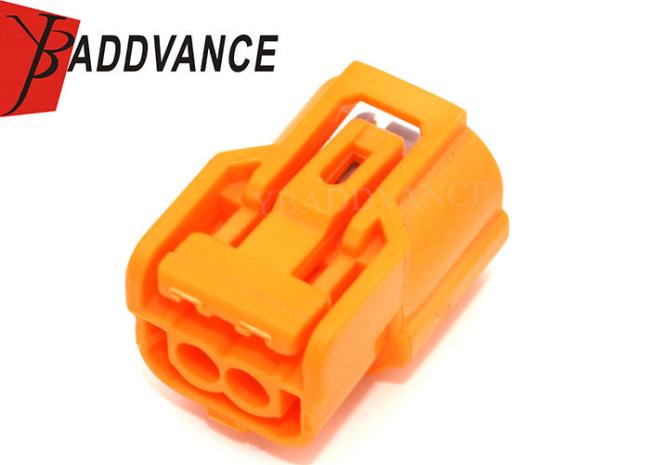

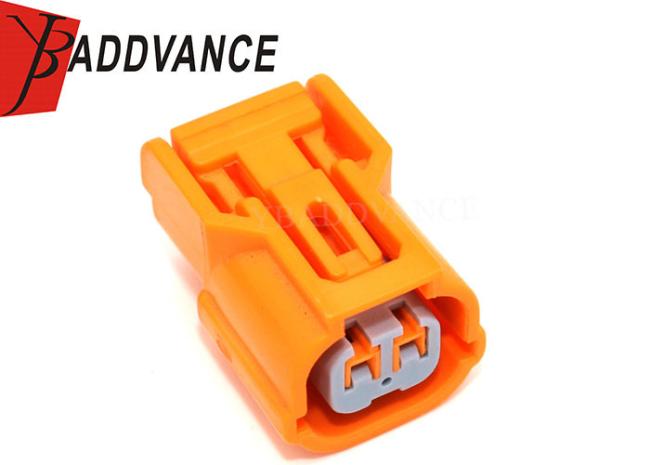

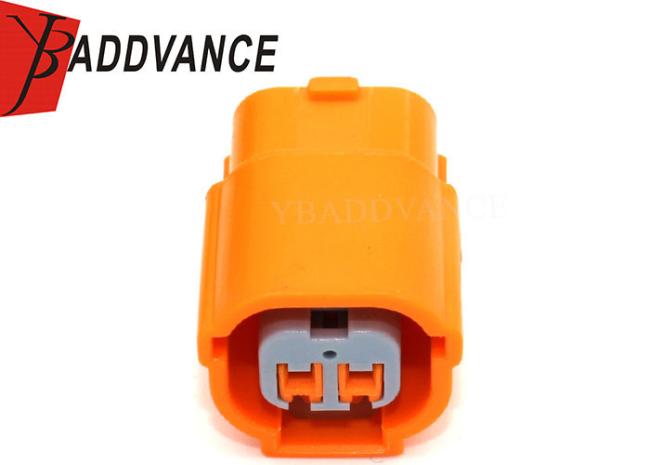

Product Picture Details
