6 Way Male Sumitomo HV 040 1.0 mm Sealed Series Connector 6188-4908
6 Way Male Sumitomo HV 040 1.0 mm Sealed Series Connector 6188-4908
Description
6 Way Male Sumitomo HV 040 1.0 mm Sealed Series Connector
It is used on H onda, K awasaki, S uzuki and Y amaha wiring looms
2 Row , 6 Way
Series : HV 040 1.0 mm sealed
Mating Part : 6189-7040
It come with 1 housing +6 wire seals+6 terminals
Width :21.5 mm
Height: 23.8 mm
Length :38.3 mm
Material
Housing:PBT+G,PA66+GF;
Terminal:Copper Alloy,Brass,Phosphor Bronze.
If you want more , please contact us to get the cheaper price
Specification
|
Item name |
6 Way Male Sumitomo HV 040 1.0 mm Sealed Series Connector 6188-4908 |
| P/N | 6188-4908 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

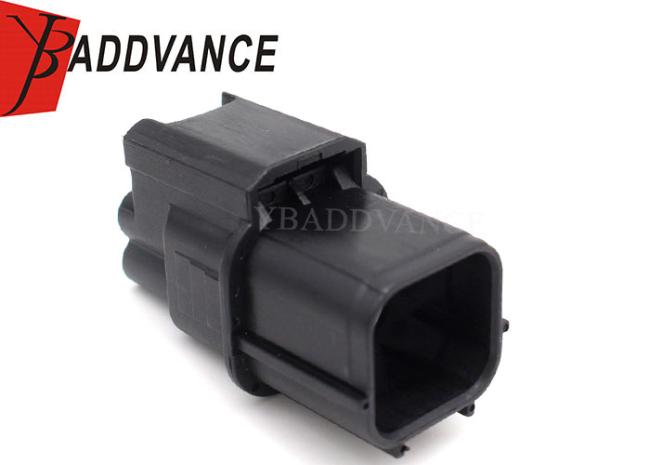

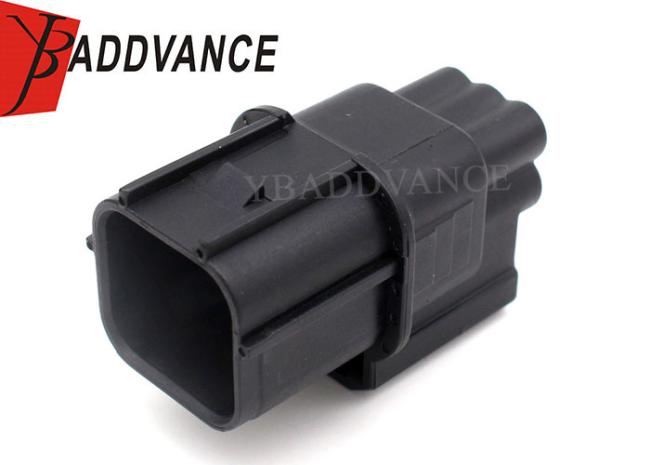

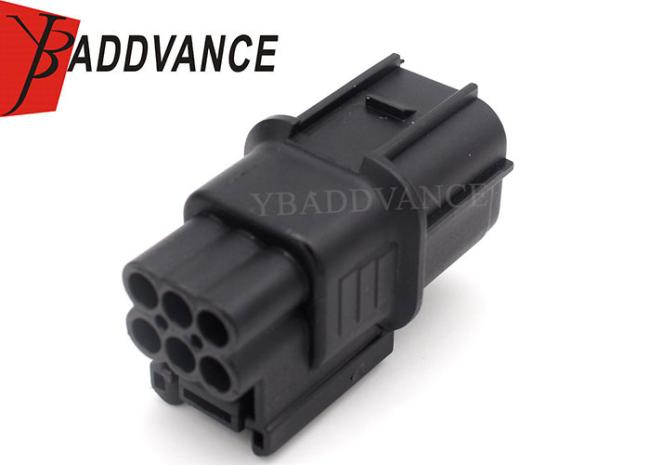

Product Picture Details
