6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913
6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913
Description
6 Pin HV Sealed Tail Light AFR Sensor Connector
H onda/Acura Air/Fuel Ratio - AFR Sensor Connector
H onda Motorcycle Tail light Connector
2 Row , 6 Way
Width :23.4 mm
Height: 21.4mm
Length :26.1 mm
Series : HV/HVG sealed series
Mating Part : 6188-4908
It come with 1 housing +6 wire seals+6 terminals+1 Lock
Related Product : Lock : 6918-2913
Height :13.2 mm
Width : 14.5mm
Specification
|
Item name |
6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913 |
| P/N | 6189-4070 6918-2913 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

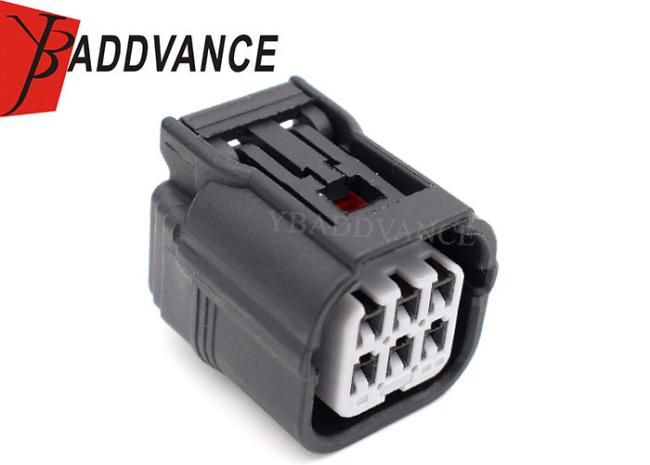

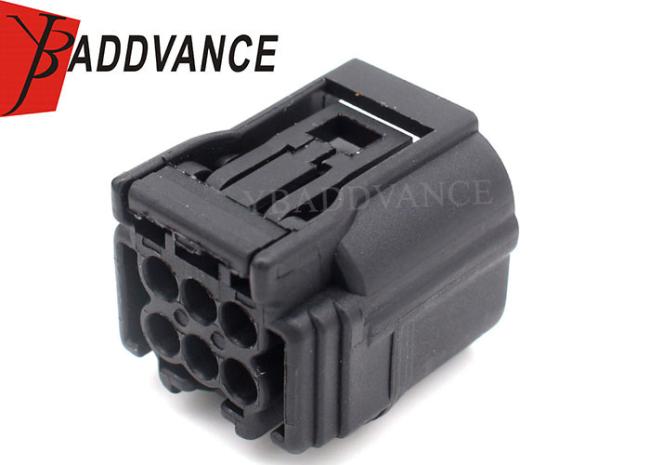

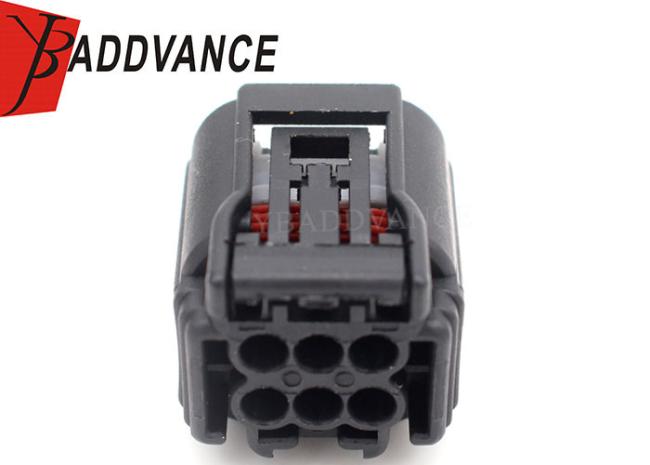

Product Picture Details
