3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
Description
3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector
It is used for Japanese Car
1 Row , 3 Way
Series : HV/HVG 040 1.0 mm sealed
Mating Part : 6189-7037
It come with 1 housing +3 wire seals+3 terminals
Width :20.1 mm
Height: 17.7 mm
Length :35.7 mm
Material
Housing:PBT+G,PA66+GF;
Terminal:Copper Alloy,Brass,Phosphor Bronze.
If you want more , please contact us to get the cheaper price
Specification
|
Item name |
3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775 |
| P/N | 6188-4775 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

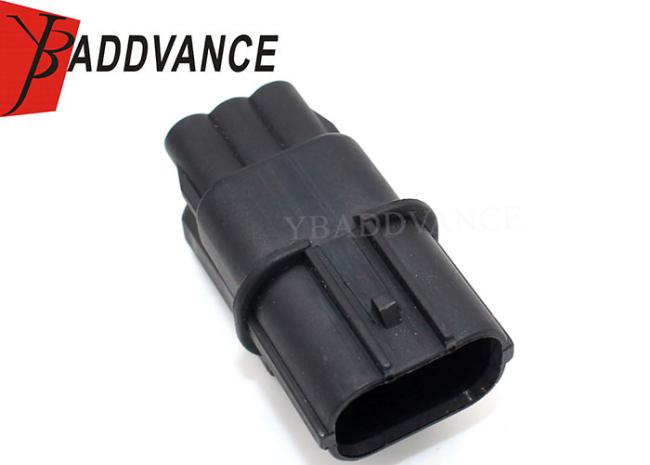

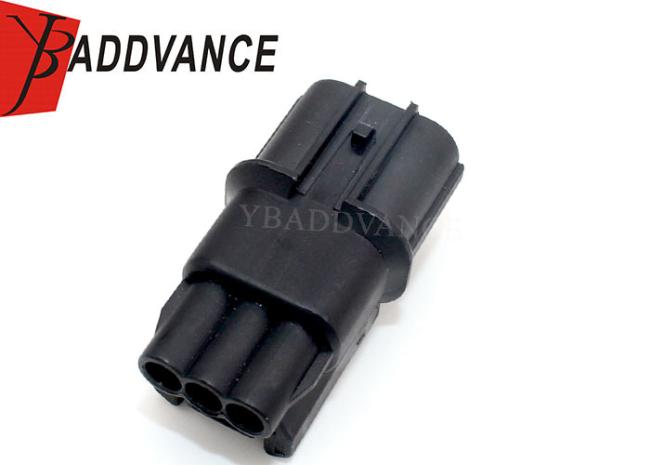

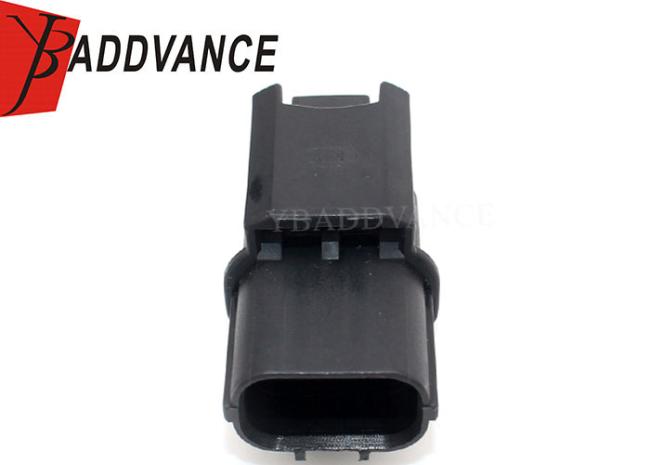

Product Picture Details
