3 Way Sumitomo Middle Rib Tail Light Connector Waterproof 6189-0887 and 6918-1833
3 Way Sumitomo Middle Rib Tail Light Connector 6189-7037 6918-1833
Description
3 Way Sumitomo Middle Rib Tail Light Connector
It is middle rib/slot , please check it carefully before you buy it
Width :23.4 mm
Height: 15.4 mm
Length :24.5 mm
1 Row , 3 Way
Series : HV/HVG 040 1.0 mm sealed
Mating Part : 6188-4775
It come with 1 housing +3 wire seals+3 terminals+1 lock
Lock :6918-1833
Width :13.5 mm
Height: 7.5 mm
Housing:PBT+G,PA66+GF;
Terminal:Copper Alloy,Brass,Phosphor Bronze.
If you want more , please contact us to get the cheaper price
Specification
|
Item name |
3 Way Sumitomo Middle Rib Tail Light Connector 6189-7037 6918-1833 |
| P/N | 6189-7037 6918-1833 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

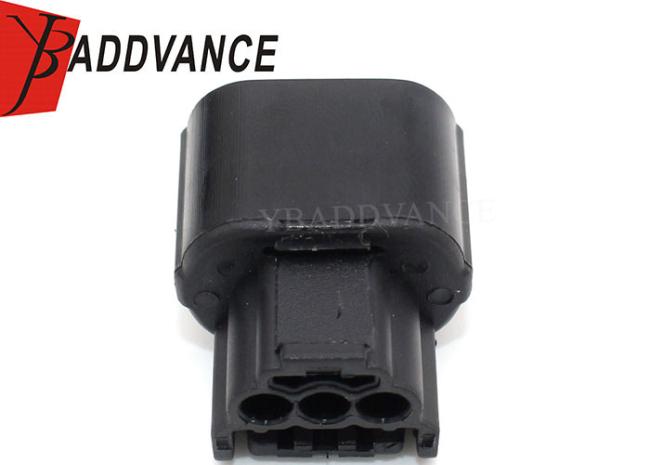

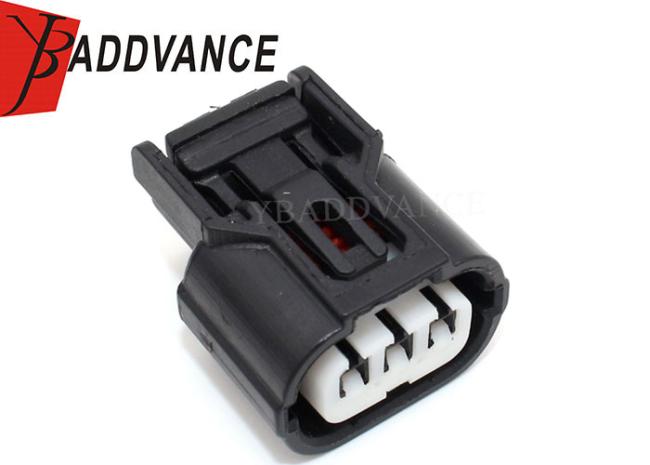

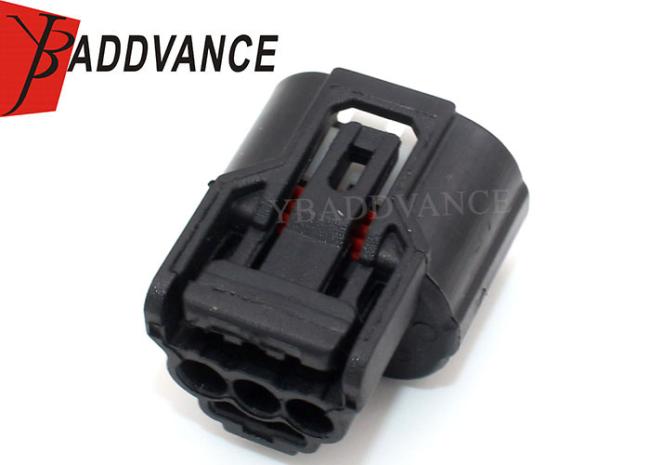

Product Picture Details
