HW Series 2 Pin Sumitomo Sealed Connectors Kit 6189-0129 For Rear Door Lock
Price:
Negotiation
MOQ:
100 UNITS
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description

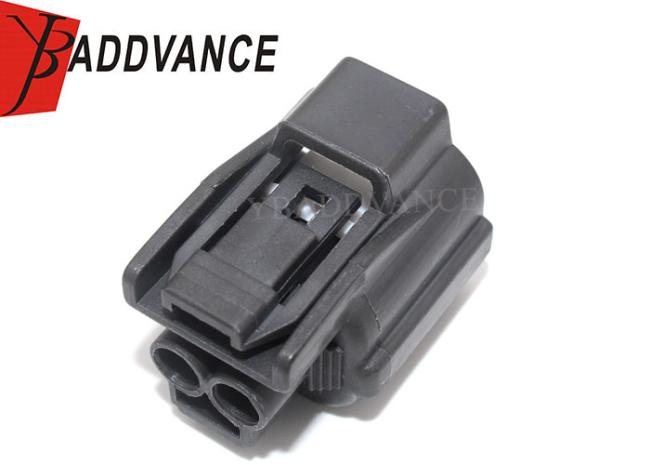

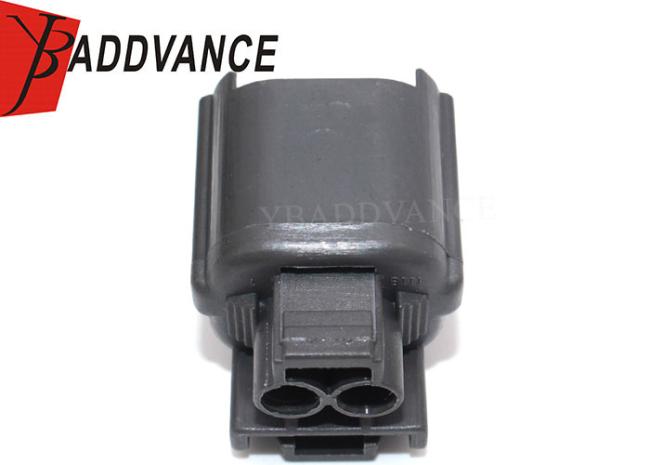

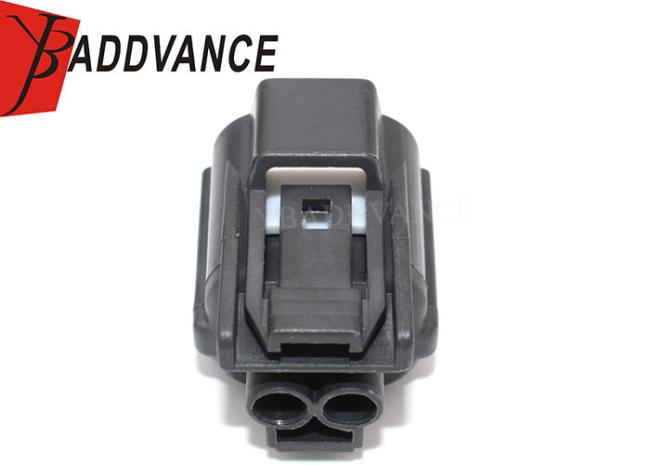

2 Way Sumitomo HW Series Sealed Female Connector Kit 6189-0129 For Rear Door Lock
Product Description
Sumitomo 6189-0129 connector HW sealed series 2.3mm(090) female 2 way housing
Connector type: housing
2 Wire Sumitomo HW Sealed Series
YBADDVANCE Made with the same OEM connectors, terminals and seals as the factory harness
Sumitomo Part #: 6189-0129
6918-0322 (Lock)
What's Included:
1X2 Way Connector
1XHarness Lock
2X Wire Terminal 18-16 AWG
2X Wire Seal
Specification
| Keywords | 2 way sumitomo female connector |
| Sumitomo Part Number | 6189-0129 |
| Series | HW sealed 2.3mm 090 series |
| Male/Female | female |
| Material | PBT |
| Number of Rows | 1 row |
| Number of Pin |
2 pin |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| Seal | Initial 49.0kPa Min. after durability tests 29.4kPa Min. |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Dark Gray |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
