6189-0887 6918-1833 Sumitomo Sealed Connectors 3 Pin Ignition Coil Connector For Honda
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description

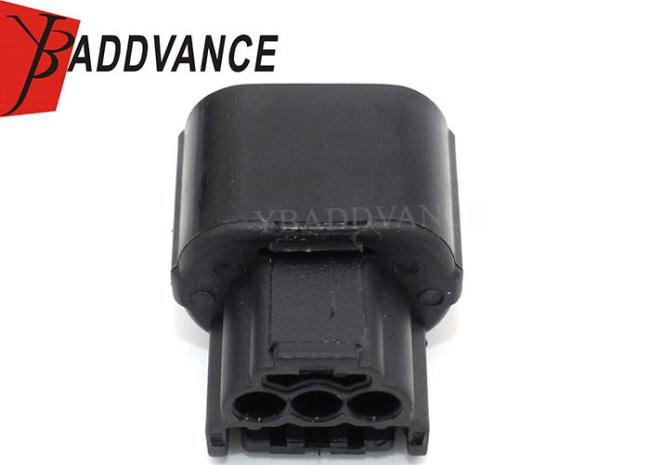

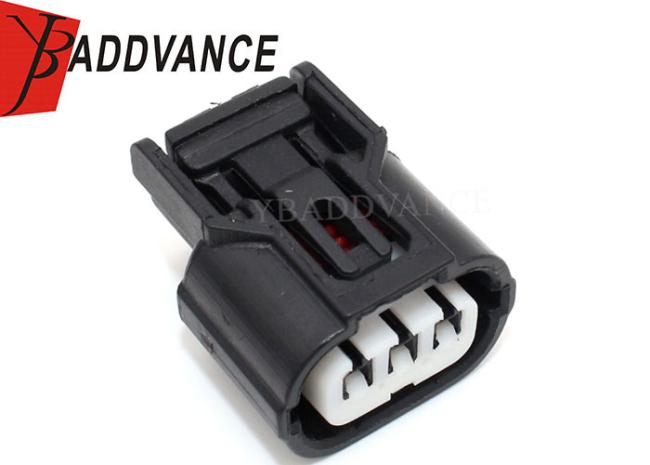

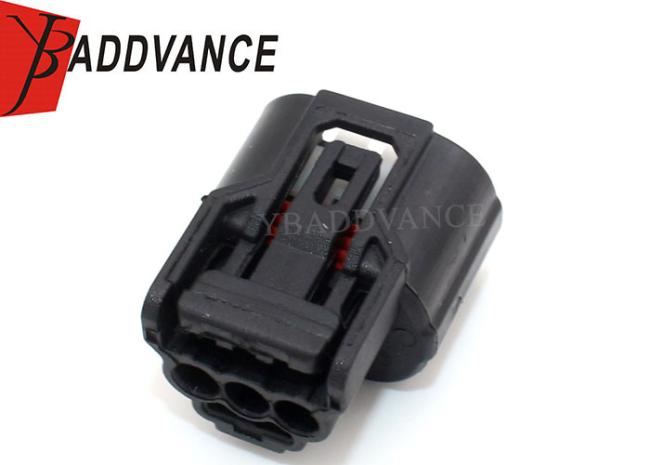

6189-0887 6918-1833 3 Pin Sumitomo Ignition Coil Connector for Honda
Description
3 Pin Sumitomo Ignition Coil Connector for Honda
It is the Ignition Coil Connector
Width :21.7 mm
Height: 15.4 mm
Length :24.5mm
1 Row , 3 Way
Mating Part : 6188-4739
Lock :6918-1833
Width :13.5mm
Height :7.5mm
Series : HX Sealed
Fits wire from 18 to 22 AWG
It is middle rib/slot , please check it carefully before you buy it
Specification
|
Item name |
6189-0887 6918-1833 3 Pin Sumitomo Ignition Coil Connector for Honda |
| P/N | 6189-0887 6918-1833 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
