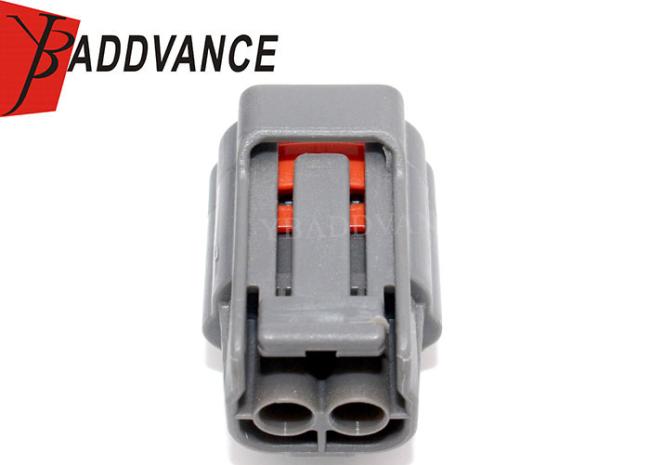

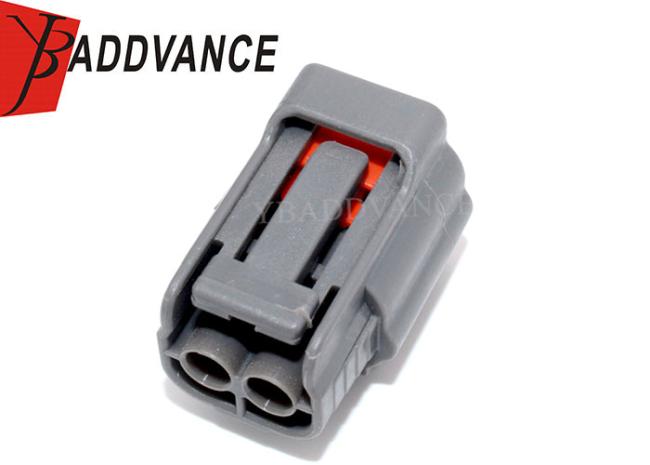

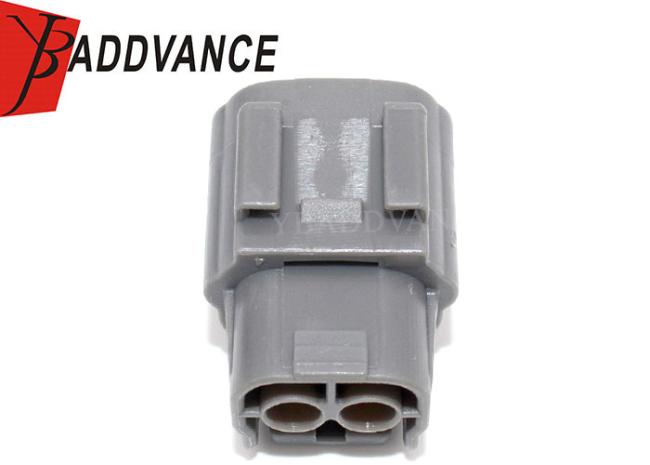

Sumitomo 2 Pin DL 090 Female Connector 6195-0003 For Mazda Knock Sensor Connector
Price:
Negotiation
MOQ:
100 UNITS
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
Sumitomo 2 Pin DL 090 Female Connector 6195-0003 For Mazda Knock Sensor Connector
Product Description
2 pin DL 090 Female Connector with Terminals and seals
Terminals Fit For wire size .3 - .85 mm (18-22 AWG)
This connector is fit for 99-05 Mazda Miata Knock Sensor Connector
What's Included:
1Xfemale 2 Way Connector
1XHarness Lock
2X Wire Terminal 22-18AWG
2X Wire Seal
Specification
| Keywords | 2 Pin knock sensor connector |
| Sumitomo Part Number | 6189-0003 |
| Series | DL 090 sealed series |
| Male/Female | female |
| Material | PBT |
| Sealed/Unsealed | Sealed |
| Way |
2 way |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| Seal | Initial 49.0kPa Min. after durability tests 29.4kPa Min. |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Black |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
More details about pictures
