5 Pin Male Fuel Injector Accelerator Pedal Connector 6188-0658
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description

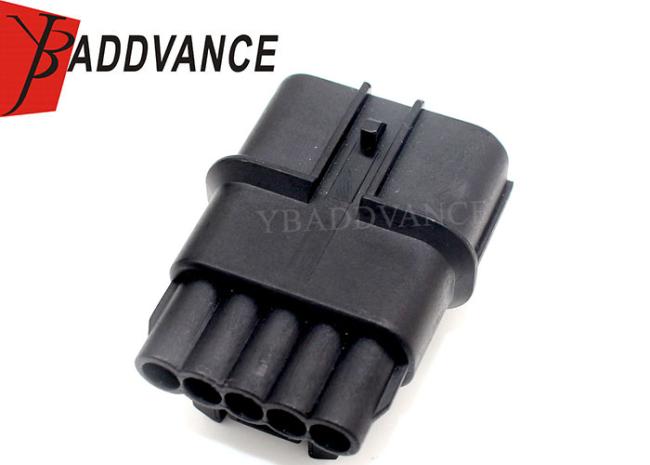

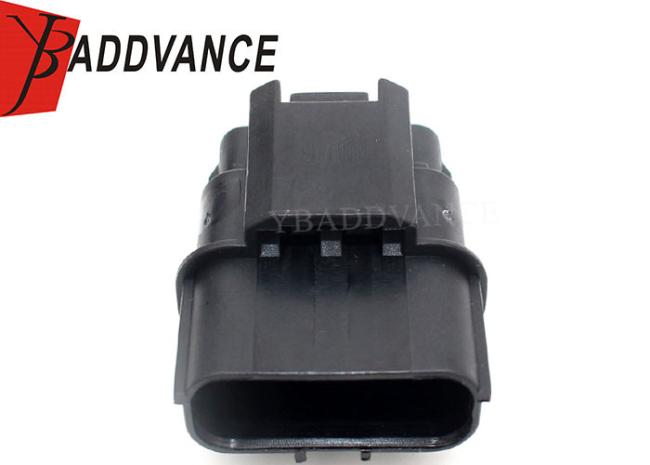

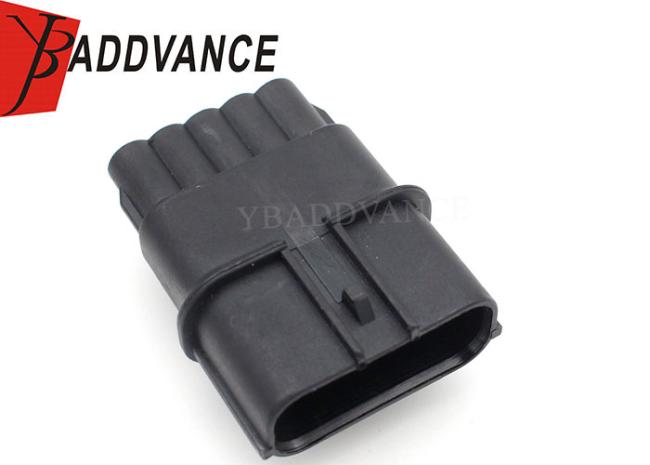

5 Pin Male Fuel Injector Accelerator Pedal Connector 6188-0658
Description
5 Pin Male Fuel Injector Accelerator Pedal Connector
1 Row ,5 way
Width :32.8 mm
Height: 18.1 mm
Length :35.7mm
Mating Part : 6189-1081 6918-2128
Series : HX Sealed
This connector has bottom rib/slot
Temperature range:-40℃~125℃
It is Sumitomo fuel injector connector
High Quality with reasonable price , if you need more , please contact us without hesitation
Specification
|
Item name |
5 Pin Male Fuel Injector Accelerator Pedal Connector 6188-0658 |
| P/N | 6188-0658 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
5 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 5 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
