2 Hole Kostal Diesel Injector Connector 09441261 09 4412 61 For VW BMW
09441261 09 4412 61 2 Pin Kostal Diesel Injector Connector Fit For VW BMW
Description
2 Pin Female Kostal Connector Fit For VW BMW
It is Kostal connector fit for VW BMW
Height :17.7 mm
Width : 23.2 mm
Length : 34.2 mm
It come with : 1 Housing Connetor +2 Terminals +2 Wire Seal+1 Lock
Housing: PA66
Lock: PA66
Terminal: Brass/Phosphor Bronze/
Seal: Silicon Rubber
12 months Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused).
Defective items MUST BE reported and returned within the warranty period
Specification
|
Item name |
09441261 09 4412 61 2 Pin Female Kostal Connector Fit For VW BMW |
| P/N | 09441261 09 4412 61 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

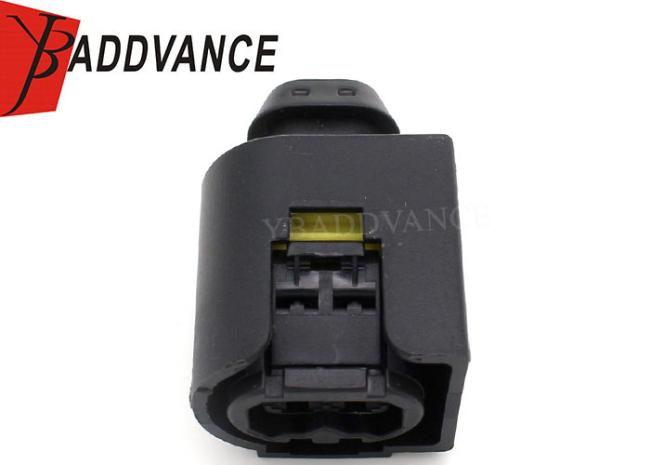

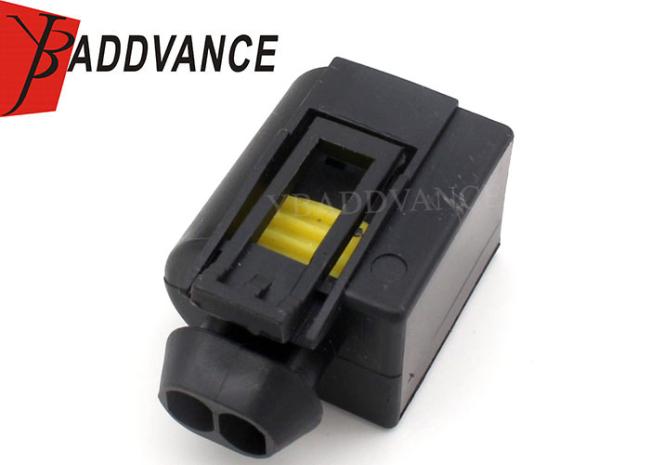

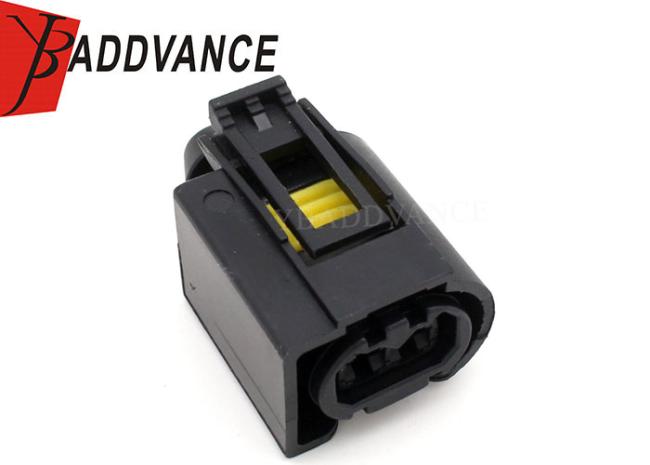

Product Picture Details
