7282-1968-30 6 Pin Male 2.3II Series Waterproof Housing Connector
7282-1968-30 6 Pin Male 2.3II Series Waterproof Housing Connector
Description
7282-1968-30 6 Pin Male 2.3II Series Waterproof Housing Connector
Longest Dimension (connector face): 43.8mm
Terminal Shape: Flat
Brand: Y azaki
Product Range: 2.3II (090II)
Number of Positions: 6
Number of Rows: 1
Mating parts :7283-1968-30
Connection Type:
Wire to Wire
Wire to Board
Wire to Device
Maximum Operating Temperature: 125℃
Minimum Operating Temperature: -40℃
If you want more, the price will be cheaper.please feel free to contact us to get cheaper price!
Specification
|
Item name |
7282-1968-30 6 Pin Male 2.3II Series Waterproof Housing Connector |
| P/N | 7282-1968-30 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

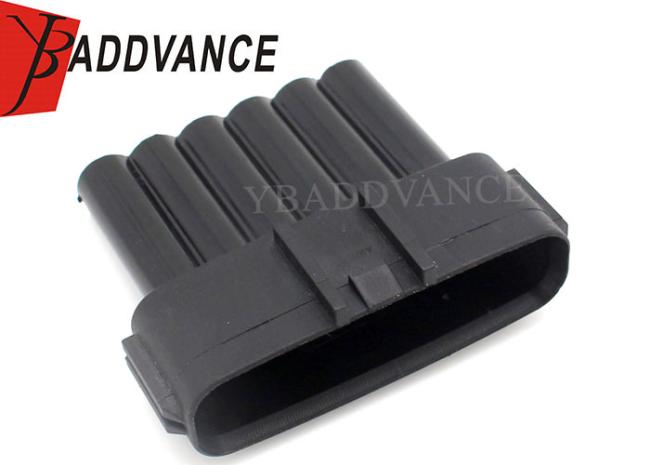

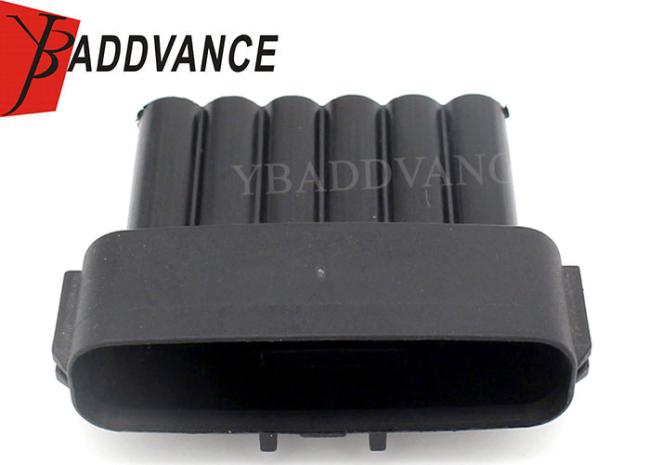

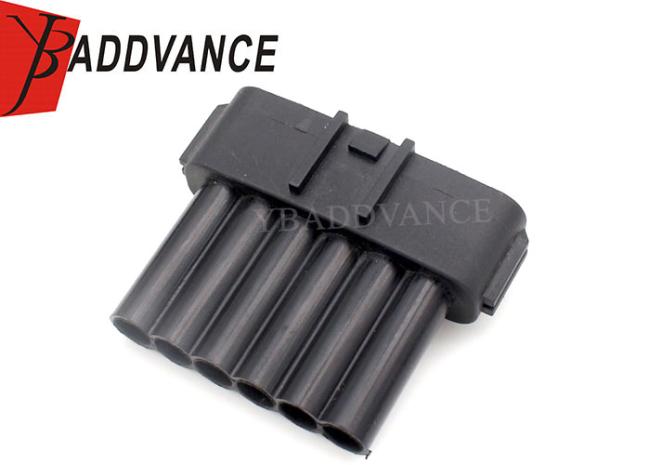

Product Picture Details
