6098-0241 3 Pin Sumitomo Reversing Lamp Connector Fit For Honda
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description

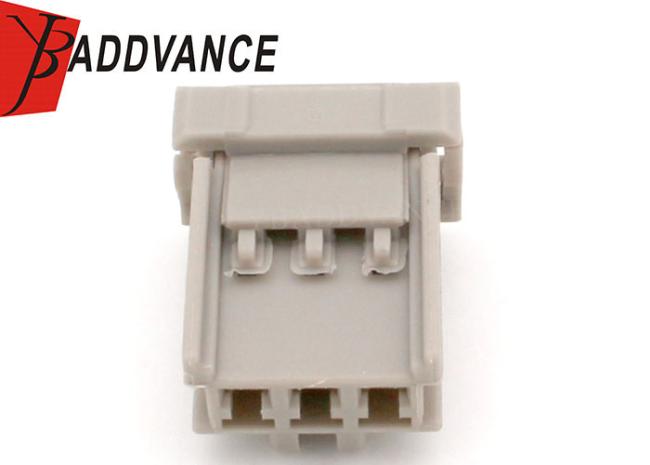

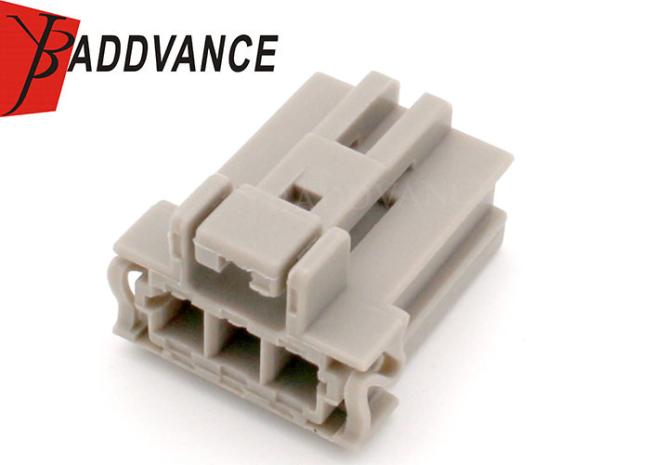

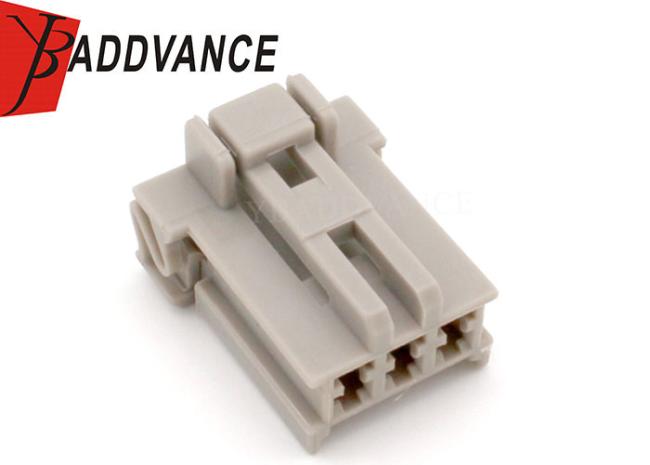

6098-0241 3 Pin Sumitomo Reversing Lamp Connector Fit For Honda
Description
3 Pin Sumitomo Reversing Lamp Connector Fit For Honda
1 Row, 3 Way
Housing Inline
Height : 11 mm
Width : 14.9 mm
Length : 21mm
Series : HD sealed series
Mating part : 6098-0242
Contact resistance:
Initial: 3mΩ Max.
after durability tests: 10mΩ Max.
It is the lamp connector fit for H onda
Specification
|
Item name |
6098-0241 3 Pin Sumitomo Reversing Lamp Connector Fit For Honda |
| P/N | 6098-0241 |
|
Wire Size |
18-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin non sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
