3 Pin Sumitomo Automotive Connectors Top Slot HV / HVG Sealed Connector 6189-7037 6918-1833
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6189-7037 6918-1833 3 Pin Sumitomo Top Slot HV/HVG Sealed Connector
Description
3 Pin Sumitomo Top Slot HV/HVG Sealed Connector
1 Row, 3 Way
Height : 15.4 mm
Width : 23.4 mm
Length : 24.5 mm
Series : HV/HVG sealed series 1.0 mm(040)
Mating part : 6188-4775
Related Part : Lock : 6918-1833
Width : 13.5 mm
Height : 7.5 mm
It is top slot, please check the picture carefully before you purchase it .
Specification
|
Item name |
6189-7037 6918-1833 3 Pin Sumitomo Top Slot HV/HVG Sealed Connector |
| P/N | 6189-7037 6918-1833 |
|
Wire Size |
18-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

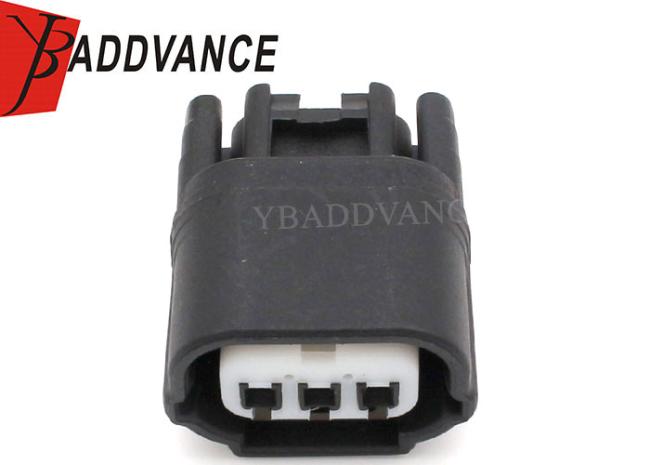

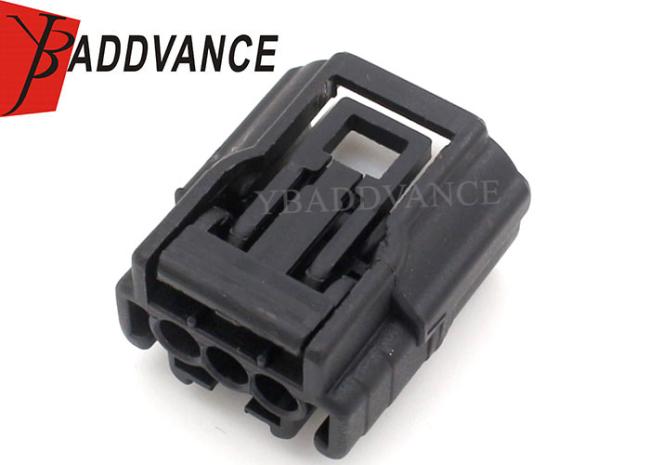

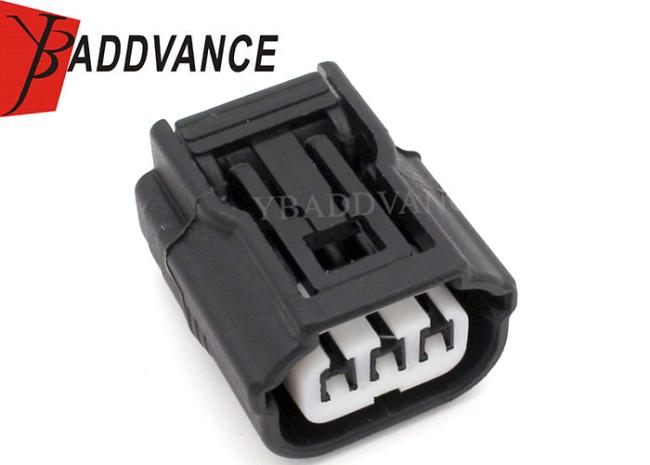

Product Picture Details
