6 Pin Female Waterproof Automotive Connectors Furukawa FSW Series FSW-C-6F-B
6 Pin Female Furukawa FSW Series Waterproof Connector FSW-C-6F-B
Description
6 Pin Female Furukawa FSW Series Waterproof Connector
2 Row, 6 Way
Series : FSW Series
It come with : 1 Housing Connector +6 Terminals + 6 Seals +1 Lock
2 x Female Terminals for 2mm - 3mm
4 x Female Terminals for .75mm - 1.25mm
Some applications include:
Arctic Cat: DVX400 2004-07,
H onda: TRX250 2000 TRX250X 2009-11, ,
S uzuki: LT-Z250 2004-09, LT-F250 2007, LT-Z400 2008, LT-A400F, LTA400C 2005, LT-R450 2008-09, GSX1400,
K awasaki: KFX400 KFX450R 2011, 2003-06, ER6-N, ER650A6F, ZR750 J1 2004,
Y amaha: YFM125 2007, YFM250 2006-09, YFM350 2006-09, YZF350 Raptor 2010, YFM400 2000-04, YZF450R 2011, YFM600 2000, YZF-R6 2006-12, YFM660 2004, 700 SX Viper, XVS1100 Dragstar 1999-2009.
Specification
|
Item name |
6 Pin Female Furukawa FSW Series Waterproof Connector FSW-C-6F-B |
| P/N | FSW-C-6F-B |
|
Wire Size |
18-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

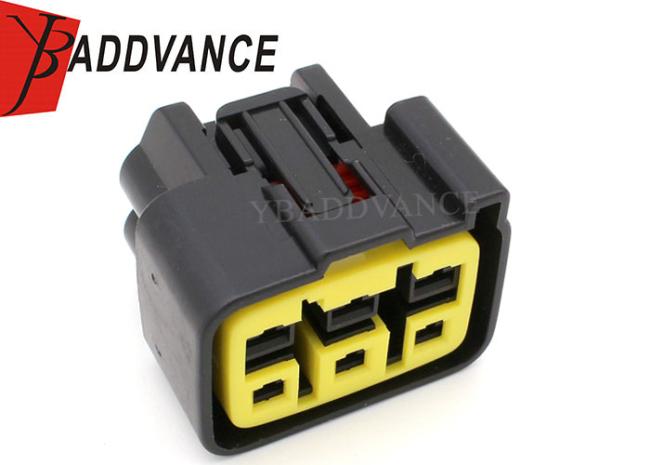

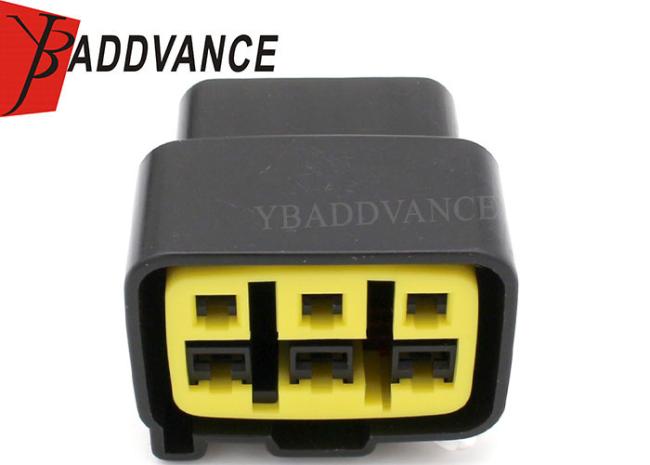

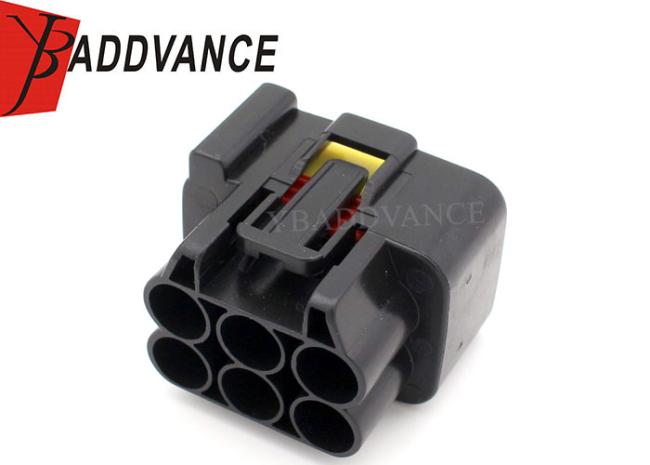

Product Picture Details
