7282-8851-30 2 Hole Yzki RH Automotive Housing Connector with Terminals
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
7282-8851-30 2 Hole Yzki RH Automotive Housing Connector with Terminals
Description
2 Hole Yzki RH Automotive Housing Connector with Terminals
1 Row, 2 Way
Height : 14.5mm
Width : 17.4 mm
Length : 34.1 mm
Tab Width mm(inches): 0.64(025)
Mating Connector : 7283-8851-30
Series : RH Series Connectors
Allowable Current(Ref.) 6A(10P)
Low Level Contact Resistance 8milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Specification
|
Item name |
7282-8851-30 2 Hole Yzki RH Automotive Housing Connector with Terminals |
| Part Number | 7282-8851-30 |
|
Wire Size |
18-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

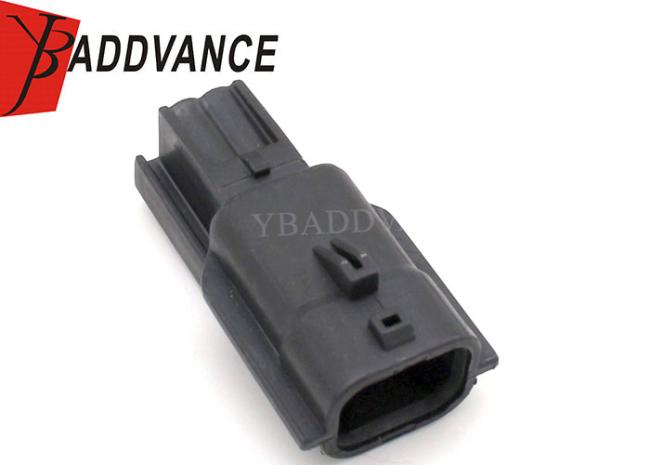

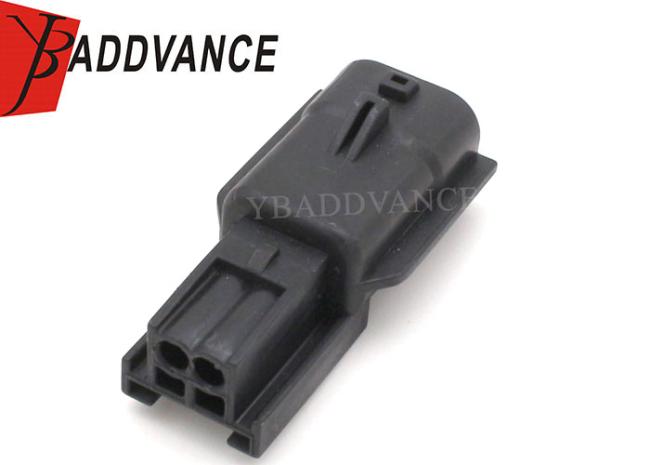

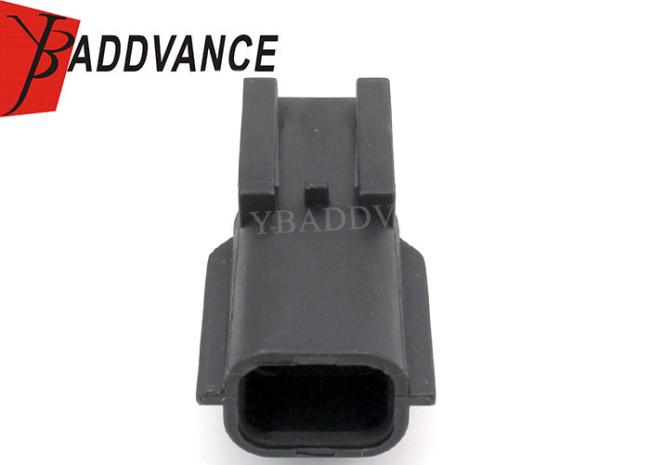

Product Picture Details
