7283-8852-30 Automotive Electrical Connectors 3 Way Female Waterproof PBT RH Connector
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
7283-8852-30 3 Way Female Waterproof PBT RH Connector
Description
3 Way Female Waterproof PBT RH Connector
Number of Positions: 3
Number of Rows: 1
Height : 18.9mm
Width : 23.12 mm
Length : 23.75 mm
Tab Width mm(inches): 0.64(025)
Mating Connector : 7282-8852-30
It included : 1 Housing connector +3 Terminals +3 Seals +1 Lock
If you have any concerns and questions , please contacte us without hesitation
Specification
|
Item name |
7283-8852-30 3 Way Female Waterproof PBT RH Connector |
| Part Number | 7283-8852-30 |
|
Wire Size |
18-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

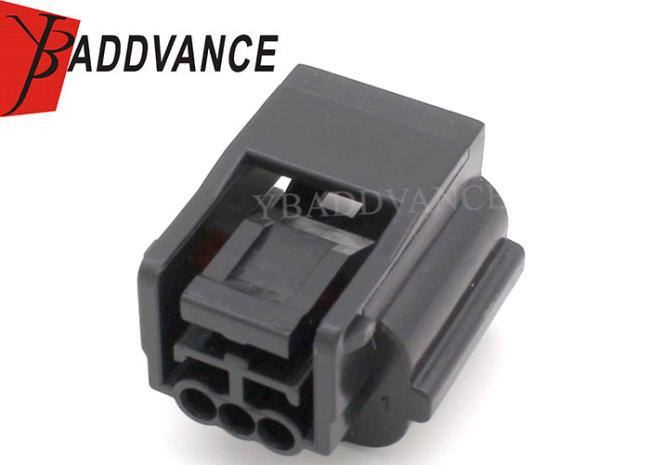

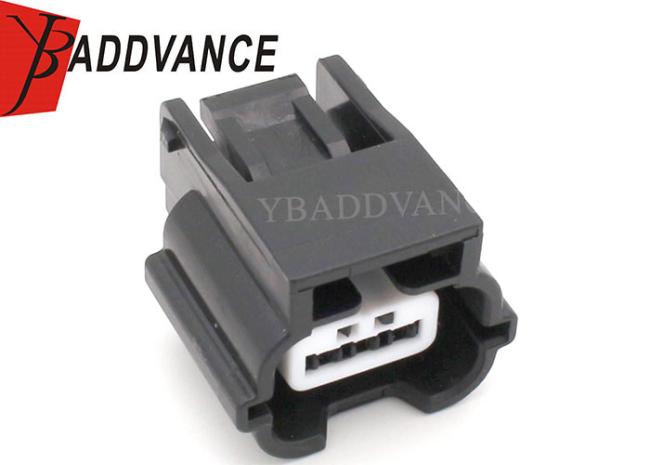

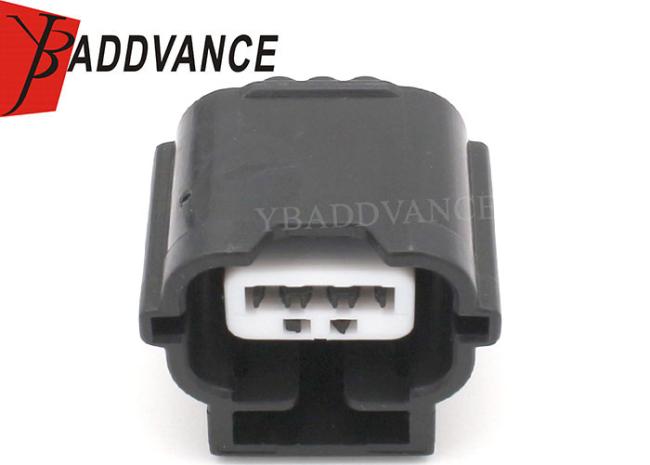

Product Picture Details
