5 Pin Female Sumitomo Automotive Connectors TS 025 90980-12292 6189-1046 For Toyota
90980-12292 6189-1046 5 Pin Female TS 025 Connector For Toyota
Description
5 Pin Female Sumitomo TS 025 Connector Fit For Toyota
Number of Positions: 5
Number of Rows: 1
Series : TS sealed series
Terminals Fit wire size 0.2 - 0.5 mm (20-24 AWG)
Height : 16.8mm
Width : 26.4 mm
Length : 21.9 mm
Some applications include:
T oyota L exus Scion - MAF - Mass air flow Sensor Connector - Tundra FRS
T oyota L exus - Wave Radar Sensor
G M D uramax 6.6L MAF Sensor Connector
Specification
|
Item name |
90980-12292 6189-1046 5 Pin Female TS 025 Connector For Toyota |
| Part Number | 90980-12292 6189-1046 |
|
Wire Size |
18-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
5 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 5 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

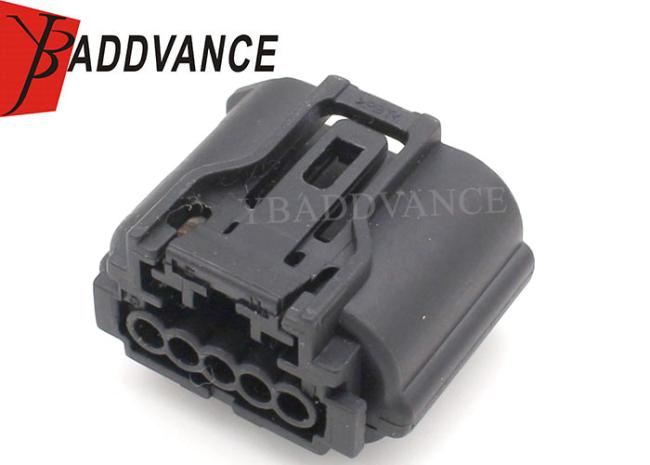

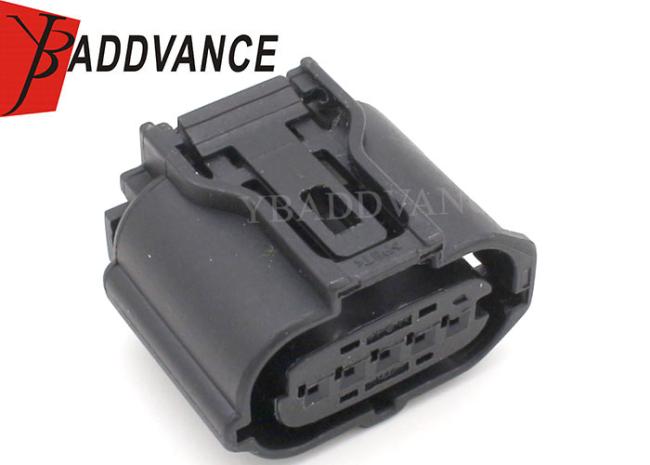

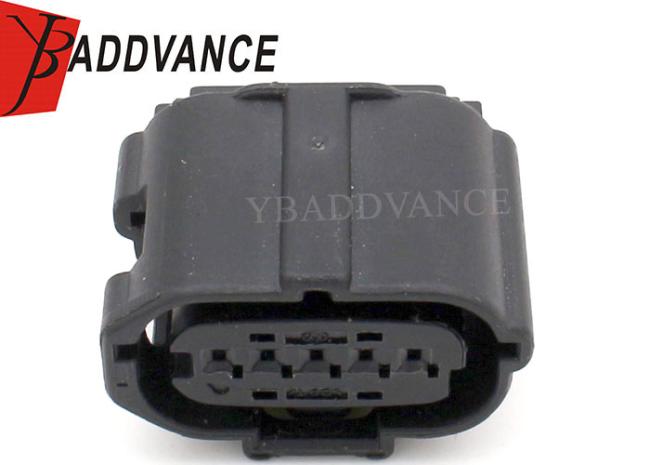

Product Picture Details
