826008-5 2 Way Automotive AMP JPT Series Sealed Connectors
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
826008-5 2 Way Automotive AMP JPT Series Sealed Connectors
Description
2 Way Automotive AMP JPT Series Sealed Connectors
It is wire-to-wire connector system for signal circuit applications
Height :17.5 mm
Width : 20mm
Length : 28 mm
Connector Type: Receptacle
Series: Junior Power Timer
Mounting Type: Free Hanging (In-Line)
2 position black mini timer Housing made of glass filled polyamide for female connector terminals.
Specification
|
Item name |
826008-5 2 Way Automotive AMP JPT Series Sealed Connectors |
| P/N | 826008-5 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

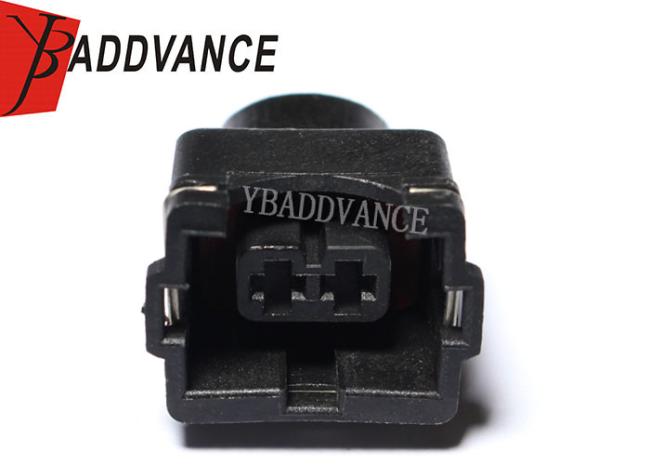

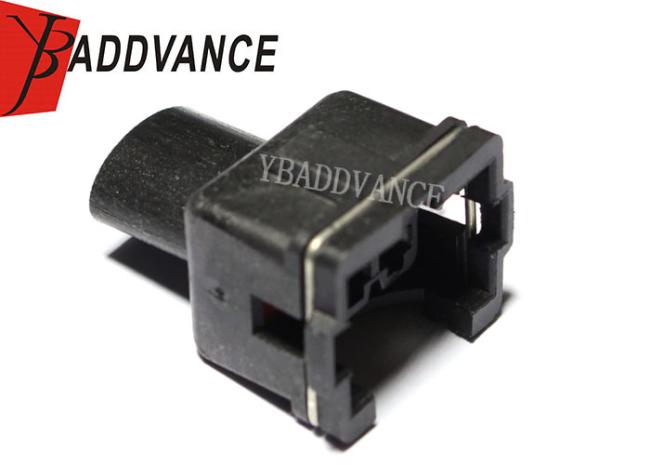

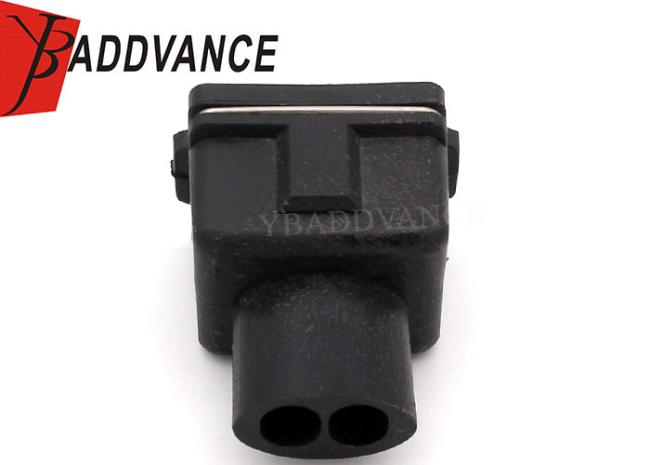

Product Picture Details
