6 Way Air Suspension Sensor AMP MQS Connector 2-967616-1 7M3 973 119 For GM
2-967616-1 7M3 973 119 6 Way Air Suspension Sensor MQS Connector for GM
Description
6 Way Air Suspension Sensor MQS Connector for GM
Series: Micro Quadlok System
Pitch: 2.54 mm
Height :17 mm
Width :30.4mm
Length : 24 mm
These MQS 2.54 mm connectors are designed to meet the demanding requirements of automotive applications. Applications include powertrain systems, safety and security systems, convenience, driver information and body and chassis systems
Specification
|
Item name |
2-967616-1 7M3 973 119 6 Way Air Suspension Sensor MQS Connector for GM |
| P/N | 2-967616-1 7M3 973 119 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

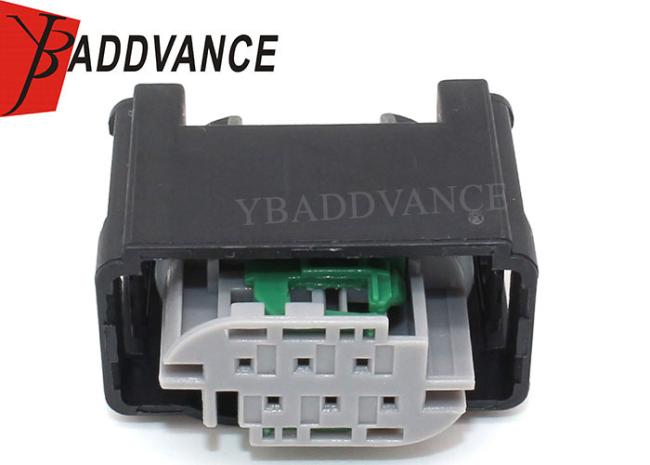

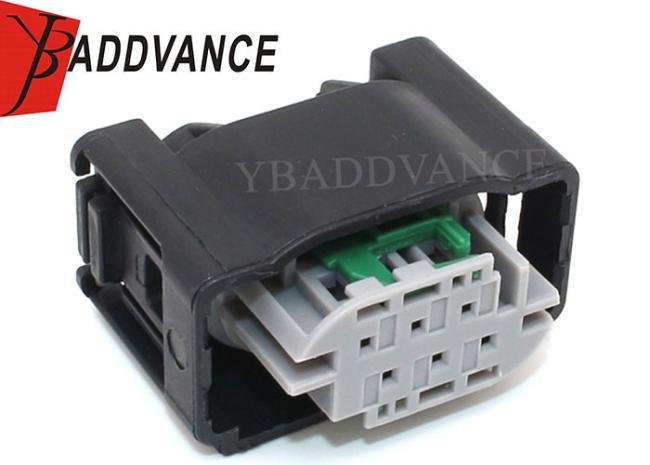

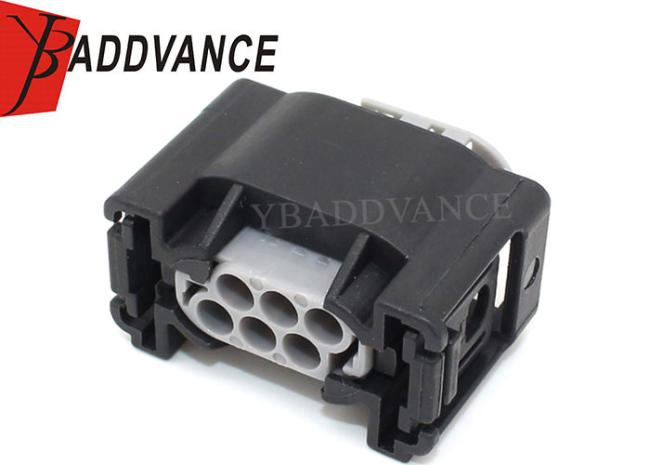

Product Picture Details
