3 Pin Female Automotive Sealed Terminals Housing Connector
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
3 Pin Female Automotive Sealed Terminals Housing Connector
Description
3 Pin Female Automotive Sealed Terminals Housing Connector
1 Row 3 Way
Housing : PBT + PA66
Terminal :Brass/Phosphor Bronze
Seals : Silicon
It come with : 1 Housing connector + 3 Terminlas + 3 Seals +1 Inner seal
If you have any concerns and questions , please contact us without hesitation
Specification
|
Item name |
3 Pin Female Automotive Sealed Terminals Housing Connector |
| P/N | BC7033B-2.2-21 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | White |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

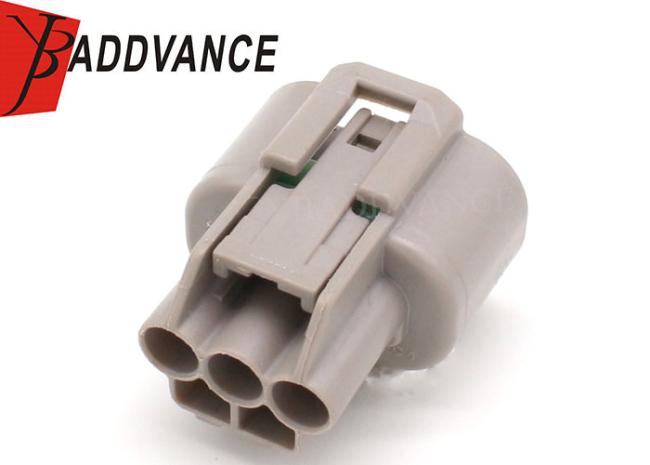

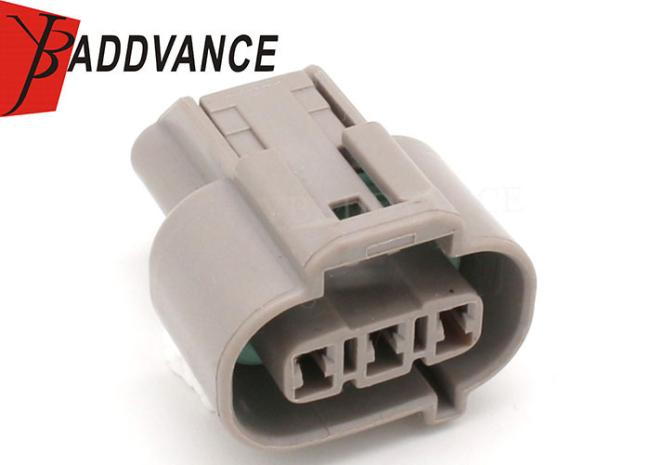

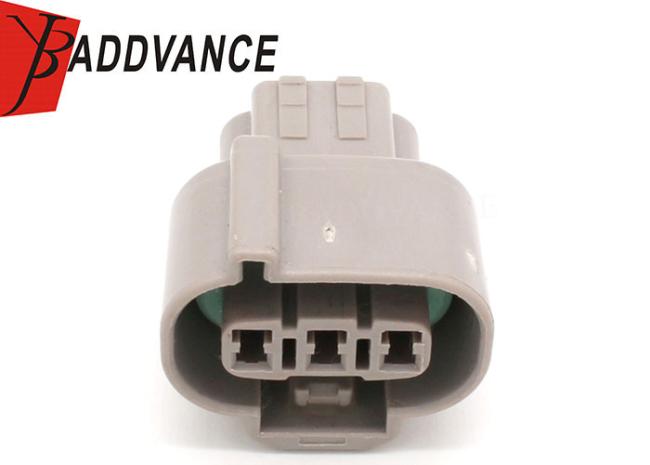

Product Picture Details
