6 Pin Male Air Flow Meter MAF Sensor Connector / RH Connectors 7282-8850-30
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description

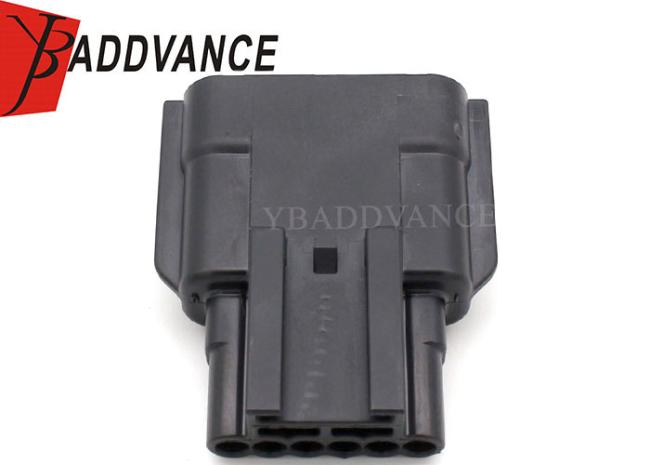

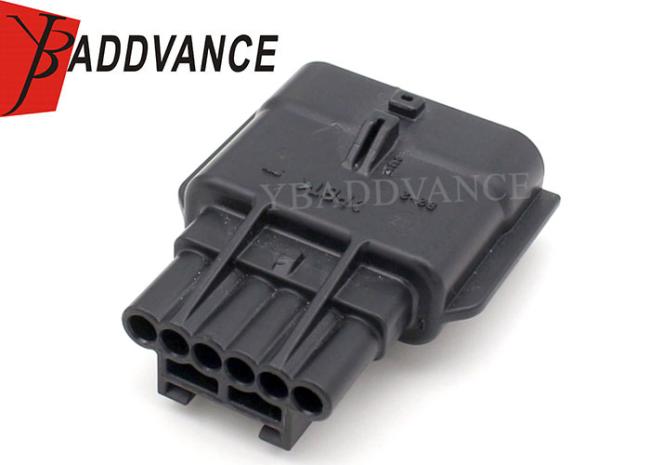

6 Pin Male Air Flow Meter MAF Sensor RH Connectors 7282-8850-30
Description
6 Pin male connector is also fit for Accelerator Pedal but most is used for nissan air flow meter
sensors.We made this connector by ourself brands YBADDVANCE .
Product Specification
Allowable Current(Ref.) : 6A(10P)
Low Level Contact Resistance : 8milli ohm Max.(Initial)
Insulation Resistance: 100Megohm Min.(at 500VDC)
Withstanding Voltage : 1000V AC (1min.)
Terminals and wire seals part numbers
Terminals Wire Seals Holders
7114-4415-02 7158-3165-90
7114-4416-02 7158-3166-60
7114-4417-02 7158-3167-80
7158-3168-80
What's included
1 X male connector housing
6 X male terminals
6 X wire seals
Specification
|
Item name |
6 Pin male connector |
| P/N | 7282-8850-30 |
| Gender | Male |
|
Wire Size |
20-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Connection Type |
Wire to Wire |
|
Family |
RH Connectors |
| Key words |
Air flow meter connectors |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The Number of Poles | 6 |
| Color | Black |
| Warranty | 1 year |
| Application | For Nissan sensors |
Product Picture Details
