SSD 3 Pin Male Automotive Electrical Connectors 7182-8730-30 TPS Sensor Connector
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
SSD 3 Pin Male Connector 7182-8730-30 For GSXR1000 K4,K5 TPS
Description
SSD 3 pin Male Connector 18 - 22 awg (.3 - 1mm) and part# 7282-8730-30
Comes Complete with Connector,Terminals, and wire seals.
With small or Large seal - These seals have a hard PBT backing
Application:
Kawasaki KFX, KFM, Z750, Ninja 650 TPS connector
Late model GSXR 600, 750, 1000 TPS connector
Miata CMP sensor connector
Specification
|
Housing P/N |
7182-8730-30 |
| Series | SSD Series |
| Mating Part Numbers | 7283-8730-30 |
|
Connection Type |
Wire to Wire |
| Material | PBT |
| Lock to Mating Part | Yes |
|
Operating Temperature range |
-40~125 degree |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin male connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of holes | 3 Pin |
| Gender | Male |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

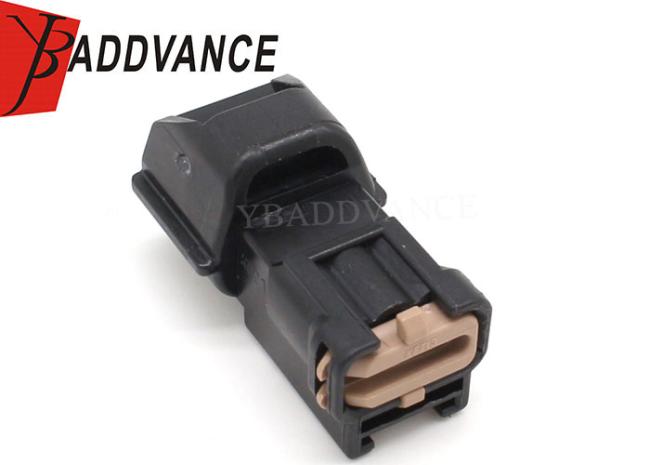

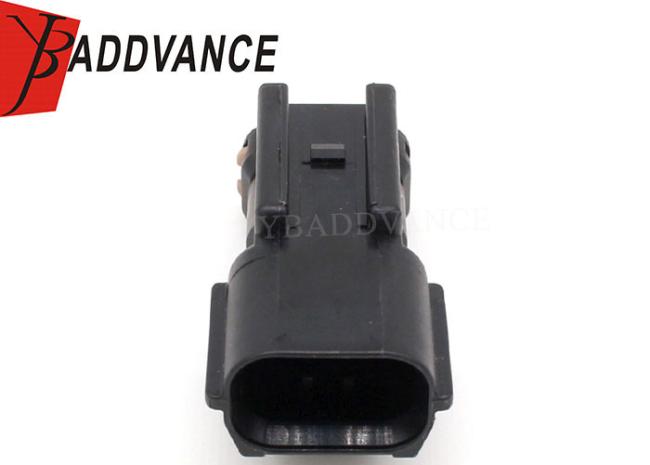

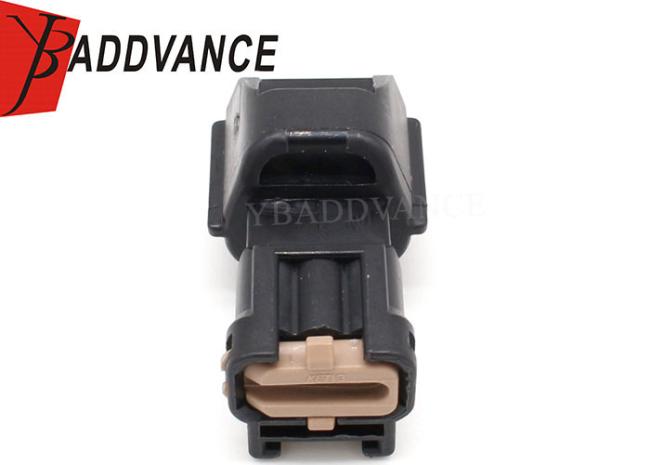

Product Picture Details
