12010974 4 Way Male Weather Pack Connector Fit For GM
12010974 4 Way Male Weather Pack Connector Fit For GM
Description
4 Way Male Weather Pack Connector Fit For GM
Number of Positions: 4
Number of Rows: 1
Current Rating: 20 A
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Series:Weather-PackTerminals are tin plated and have special core wings which allow crimp-only connections, eliminating the need for solder. The connector and cavity seals are triple-ribbed and made of self-lubricating silicone
Specification
|
Item name |
12010974 4 Way Male Weather Pack Connector Fit For GM |
| P/N | 12010974 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

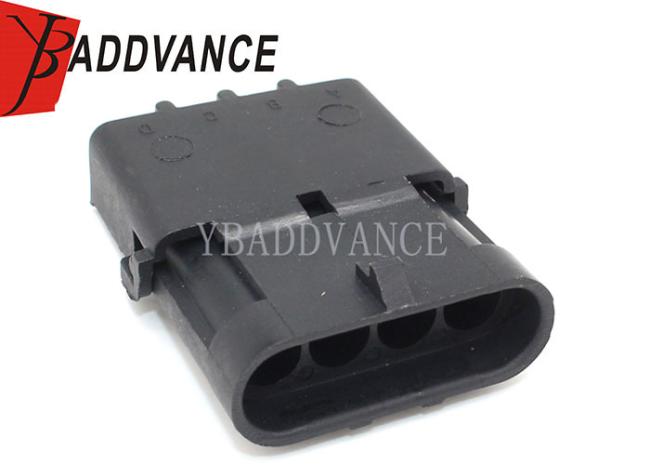

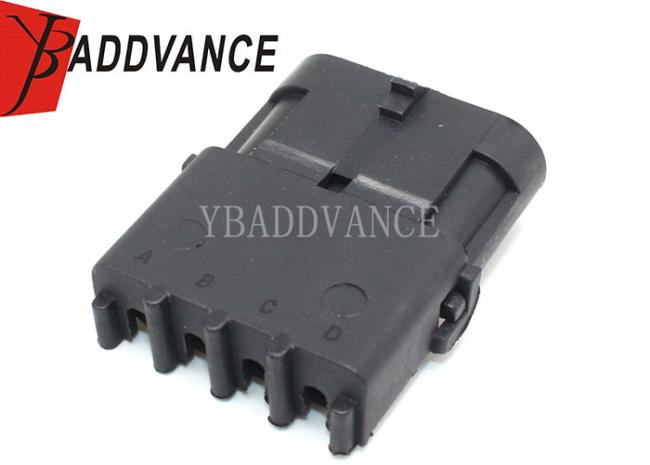

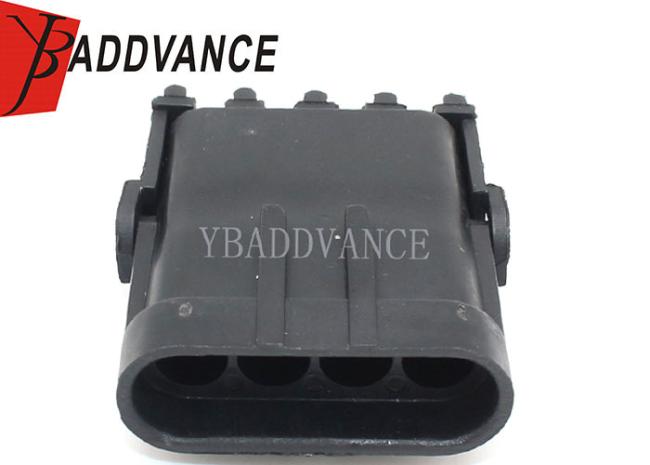

Product Picture Details
