12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors
12015791 1 Hole Female Weather Pack Tower Waterproof Connector
Description
1 Hole Female Weather Pack Tower Waterproof Connector
Depth:40.5 mm
Height:20.8 mm
Width: 13.6 mm
Each connection requires a male and female terminal, a seal for each terminal, and a male and female housing.
Pick terminals that match your wire size, then choose a housing that offers the number of connections you'd like to make.
All terminals work with all housings, regardless of wire size.
Terminals require two crimps (terminal to wire strands, terminal to seal to wire insulation). A proper crimping tool is required.
Specification
|
Item name |
12015791 1 Hole Female Weather Pack Tower Waterproof Connector |
| P/N | 12015791 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
1 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 1 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

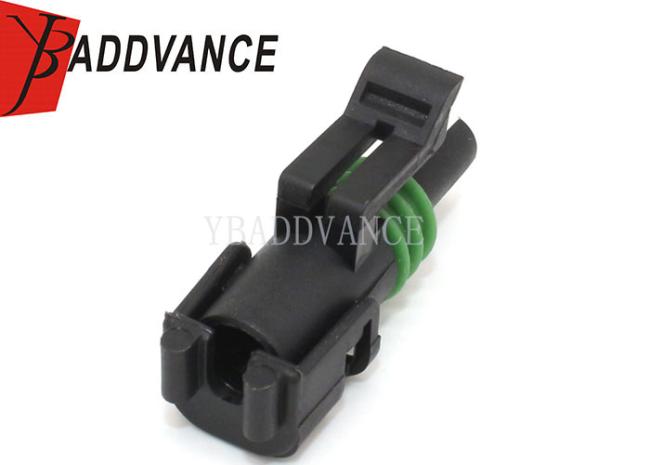

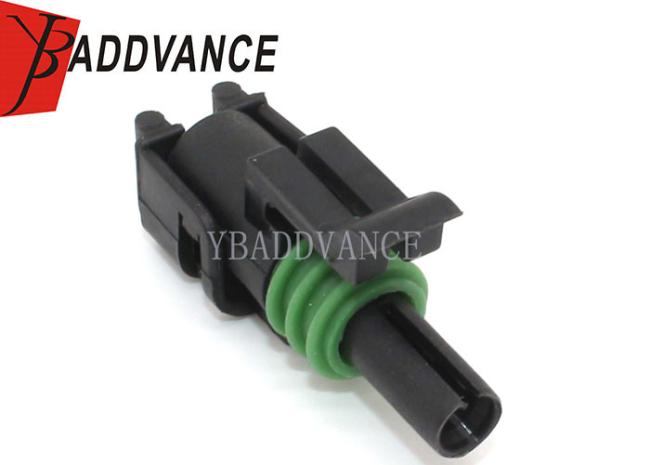

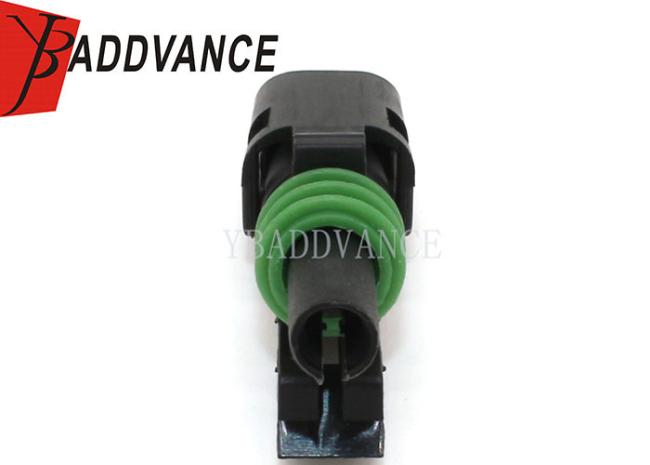

Product Picture Details
