3 Pin 250 Sealed Waterproof Automotive Connectors DS250-3F ISO9001 Approval
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
DS250-3F 3 Pin 250 Sealed Connector For Japanese Motorcycle
Description
3 Pin 250 Sealed Connector For Japanese Motorcycle
Series : 250 Sealed
Wire Gauge Range: 14 AWG to 18 AWG (0.75-2mm)
These also used on some models for a stator Connector
These unique and hard to find connectors are some of the earliest sealed types.
Using .250” terminals, they are capable of currents up to 20A.
Please contact us without hestation if you have more concerns or questions
Specification
|
Item name |
DS250-3F 3 Pin 250 Sealed Connector For Japanese Motorcycle |
| P/N | DS250-3F |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
Sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Yellow |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

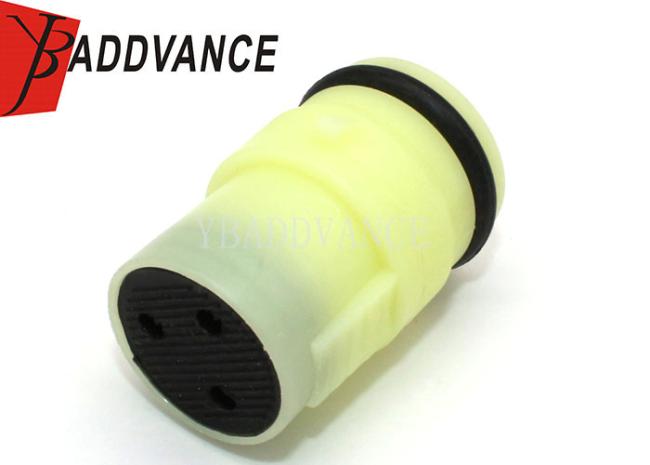

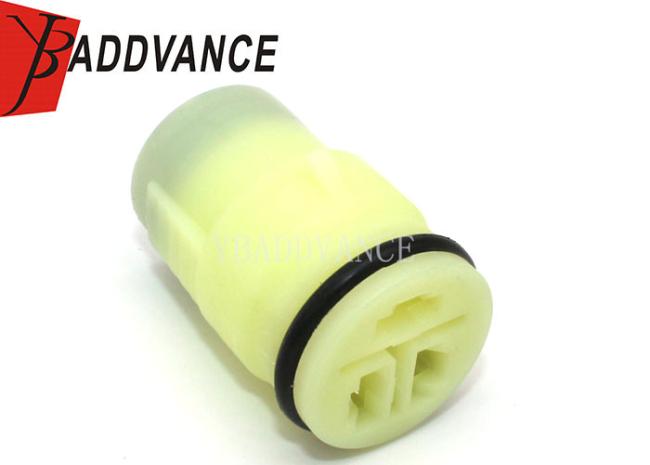

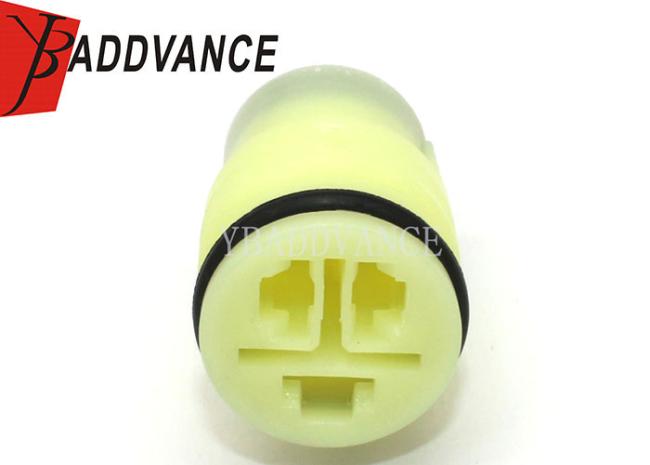

Product Picture Details
