12015024 GM Weather Pack Electrical Connector Square Shroud 4 Pin Male
12015024 GM Weatherpack Electrical Connector Square Shroud 4 Pin Male 14-18 AWG
Product Description
4 Way Black Weather Pack Shroud Sealed Male Connector, Max Current 20 amps
Weather Pack Connectors are environmentally sealed electrical connections designed to withstand exposure to extreme temperatures and moisture. Terminals are tin plated and have special core wings which allow crimp-only connections, eliminating the need for solder. The connector and cavity seals are triple-ribbed and made of self-lubricating silicone. Cavity plugs are available to fill unused cavities.
1 X Male Housing
4 X Wire Seals
4 X Male Terminals
Specification
| Mount | Cable |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Termination | Crimp |
| Depth | 47mm |
| Height | 24.9 mm |
| Width | 24.1 mm |
| Connector System | Wire-to-Wire |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Black |
| Gender | Male |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.8kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |

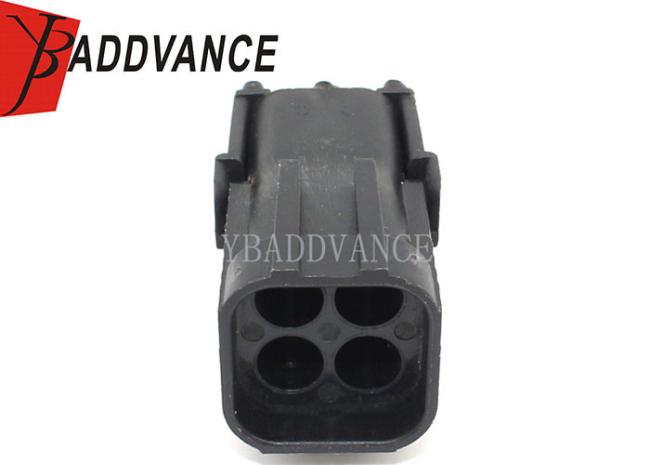

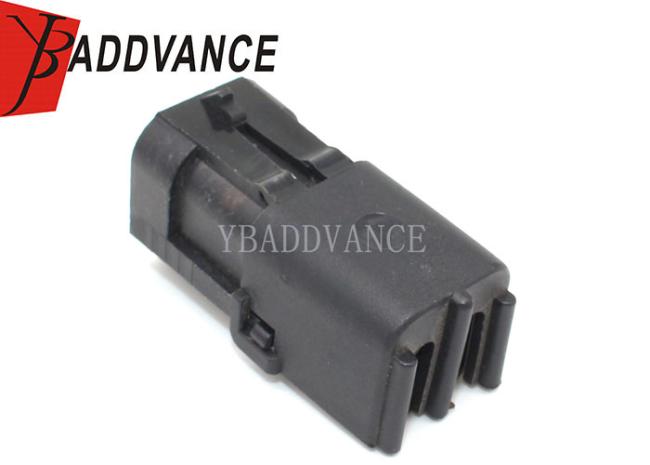

More product pictures
