3 Pin Ignition Coil Connector PA66 / Sealed Connectors Automotive For Ford
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
3 Pin Ignition Coil PA66 High Pressure Bundle Connector Fit For Ford 1W7T-14A464-MA
Description
3 Pin Ignition Coil PA66 High Pressure Bundle Connector Fit For Ford
It also has Grey color
Terminal of Pitch:1.5mm
Number of Positions: 3
Operating Temperature range:-40℃~120℃
Included : 1 housing +3 terminals +3 seals
Material : Housing:PBT+G,PA66+GF;Terminal:Copper Alloy,Brass,Phosphor Bronze.
Specification
|
Item name |
3 Pin Ignition Coil PA66 High Pressure Bundle Connector Fit For Ford |
| P/N | BC7033A-2.3-21 1W7T-14A464-MA |
|
Wire Size |
10-14AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

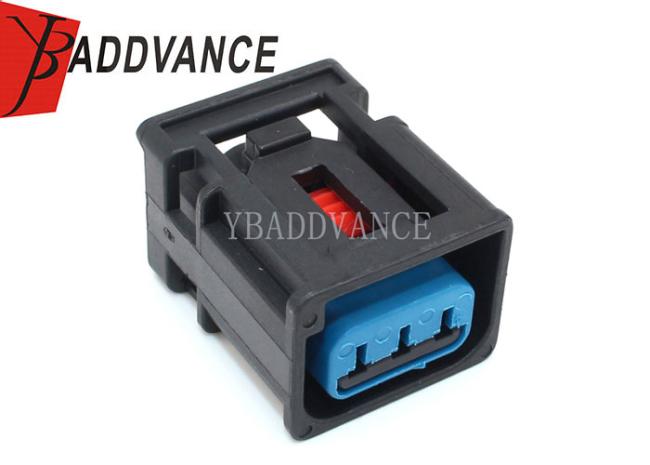

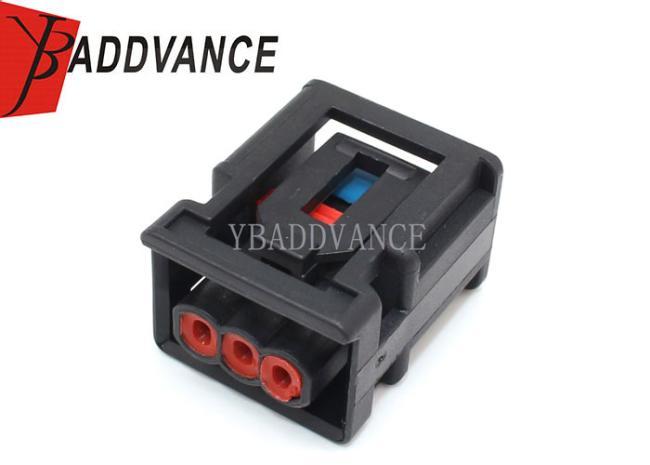

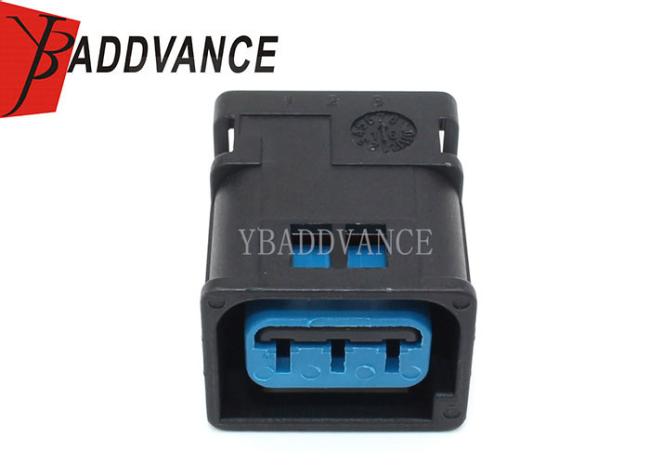

Product Picture Details
