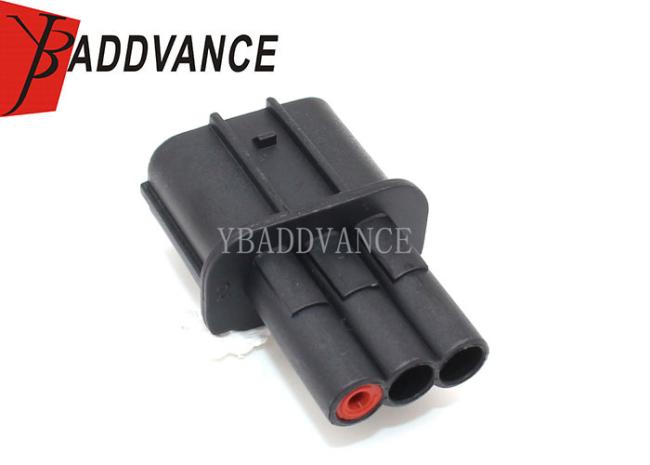

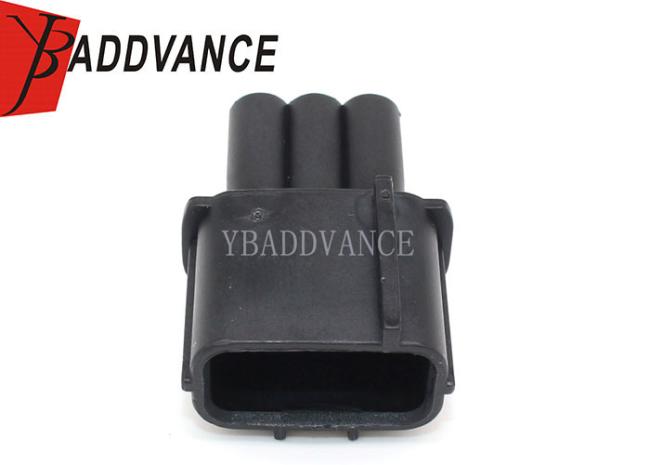

Sumitomo 6189-0596 Male 3 Way Connector / Ignition Coil Plug For Honda Accord CRV
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
Sumitomo 6189-0596 Male 3-Way Connector Ignition Coil Plug For Honda Accord CRV Civic
Description
3-way male sumitomo HX series connector with the following parts
1 X male housing
3 X male terminals
3 X wire seal
Extra male Terminal for HX 090 series
Sumitomo part number 8240-4562
Extra Wire Seal for HX 090 series
Rubber Seal For Larger wire diameter 14-18 awg
Specification
|
Item name |
Sumitomo 6189-0596 Male 3-Way Connector Ignition Coil Plug |
| Sumitomo P/N | No |
|
Wire Size |
14-18AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
Sumitomo 3 pin male connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 Holes |
| Color | Black |
| Warranty | 1 year |
| Application | For Japanese Cars |
