6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6181-6850 8 Pin Male Sumitomo HX Sealed 060 Series Connector
Description
8 Pin Male Sumitomo HX Sealed 060 Series Connector
Pitch : 1.5mm
Width: 26.2 mm
Height : 22.75mm
Length : 35.5mm
Mating connector: 6189-7423
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Specification
|
Item name |
6181-6850 8 Pin Male Sumitomo HX Sealed 060 Series Connector |
| P/N | 6181-6850 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
8 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 8 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

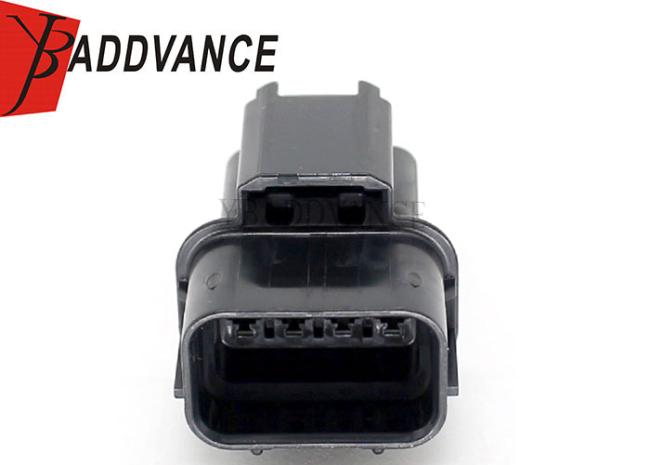

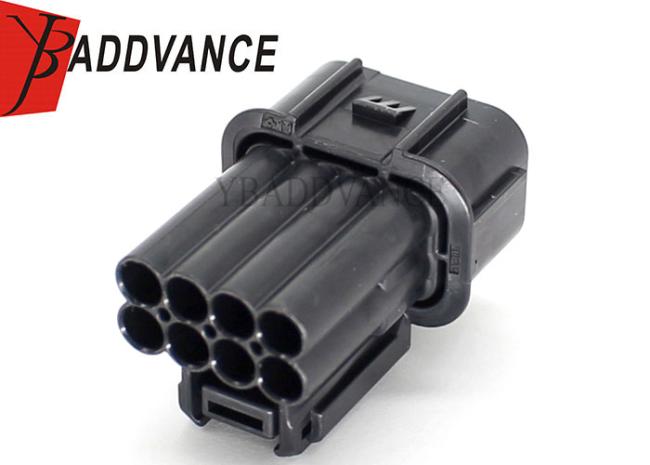

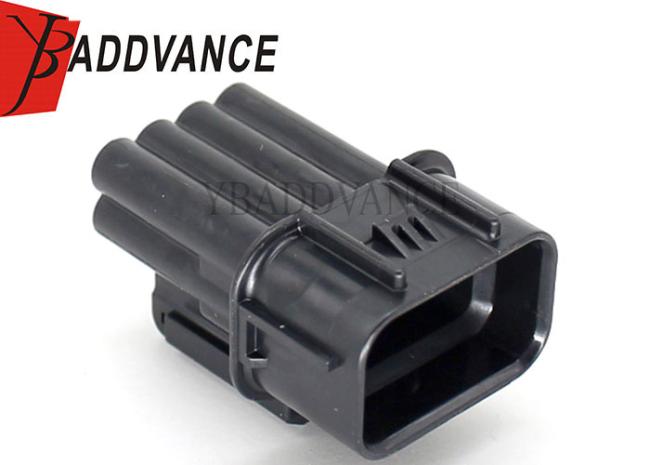

Product Picture Details
