Female HX 1.5mm Sealed Sumitomo Automotive Connectors 8 Position 6189-7243
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6189-7243 8 Position Female HX 1.5mm Sealed Sumitomo Connector
Description
8 Position Female HX 1.5mm Sealed Sumitomo Connector
Width: 29 mm
Height : 21.75 mm
Length : 23.25mm
Mating connector: 6181-6850
Contact resistance
Initial:3mΩ Max.
after durability tests:6mΩ Max.
Seal
Initial:98kPa Min.
after durability tests:49kPa Min.
Specification
|
Item name |
6189-7243 8 Position Female HX 1.5mm Sealed Sumitomo Connector |
| P/N | 6189-7243 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
8 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 8 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

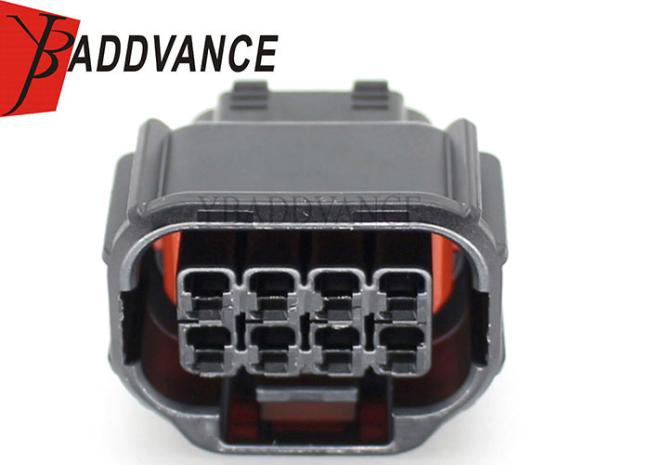

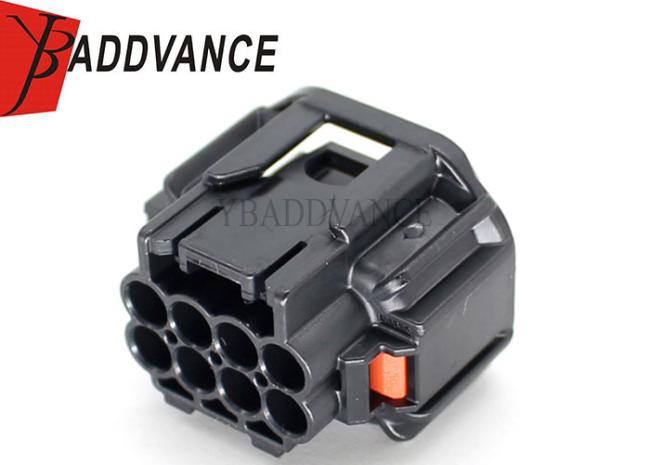

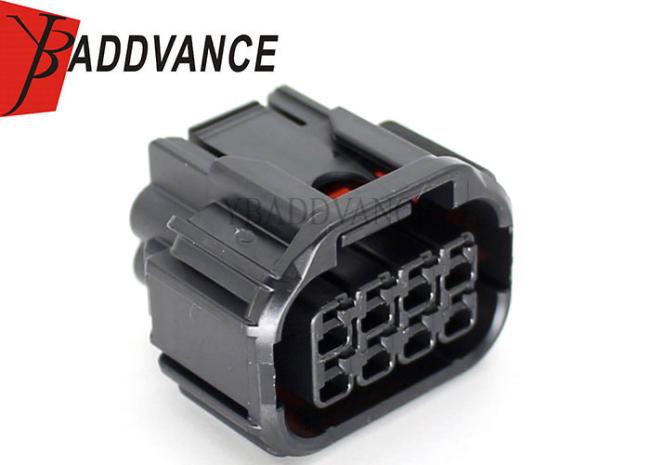

Product Picture Details
