Sumitomo RS Sealed 2 Pin Male Connector 090 Series 6188-0552 6918-1774
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6188-0552 6918-1774 2 Pin Sumitomo RS Sealed 090 Series Connector
Description
2 Pin Sumitomo RS Sealed 090 Series Connector
It included : 1 Housing +2xTerminals + 2xSeals
Width: 22.1 mm
Height : 22.9 mm
Length : 42.2mm
Pitch : 2.3 mm
Mating connector: 6185-0865
We also can provide the dummy plug if you need it
Specification
|
Item name |
6188-0552 6918-1774 2 Pin Sumitomo RS Sealed 090 Series Connector |
| P/N | 6188-0552 6918-1774 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

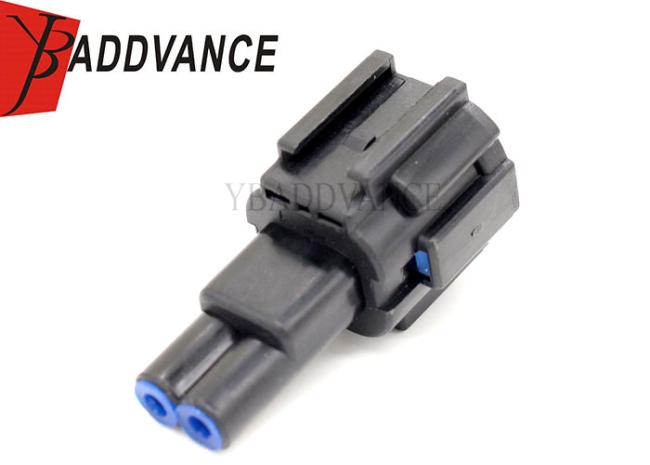

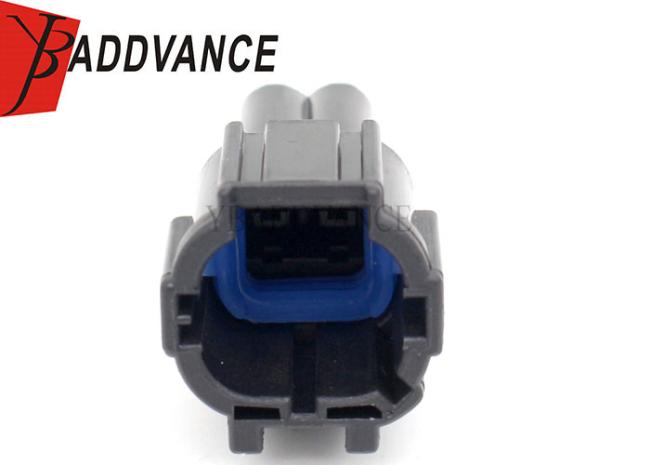

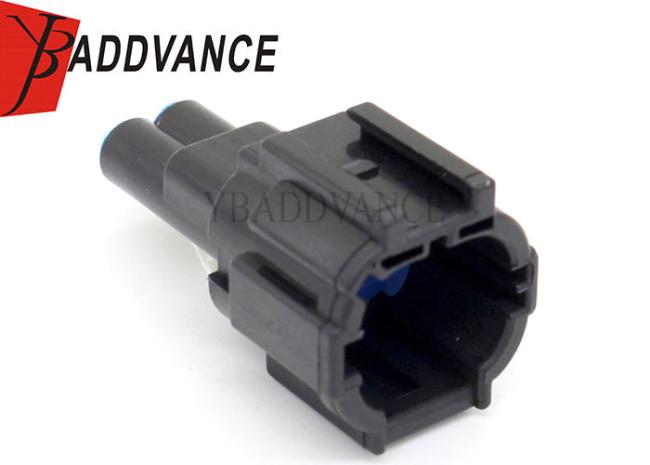

Product Picture Details
