Blue Sealed 4 Way Sumitomo Automotive Connectors 6189-7041 6918-2810
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description

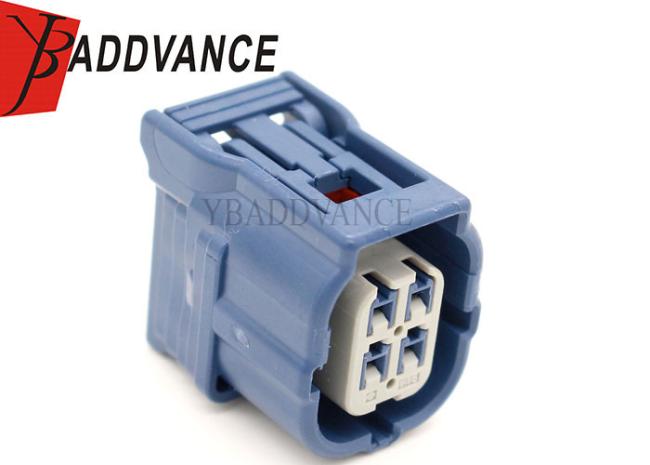

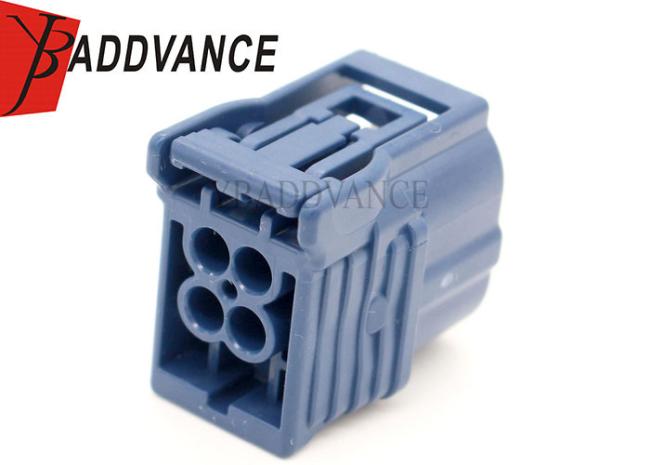

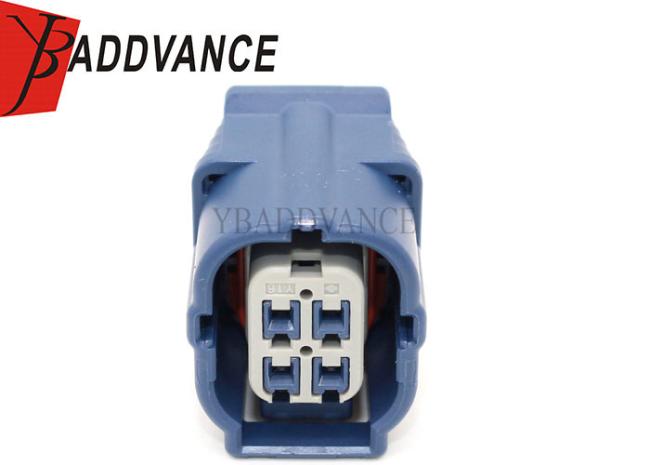

6189-7041 6918-2810 4 Way Sumitomo HV .040 O2 Sensor Connector
Description
4 Way Sumitomo HV .040 O2 Sensor Connector
Width: 19 mm
Height :20.85 mm
Length : 23.5mm
We can make the wire if you need it
Terminals Fit wire size:0.5- 1.3 mm (18-22 AWG)
It included : 1 Housing +4xTerminals + 4xSeals+1 Lock+1 Inner seal
It is bottom rib please chek it carefully before you purchase it
Specification
|
Item name |
6189-7041 6918-2810 4 Way Sumitomo HV .040 O2 Sensor Connector |
| P/N | 6189-7041 6918-2810 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Blue |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
