2 Way Male Deutsch Automotive Connectors DT04-2P-E008 With Heat Shrink End
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
DT04-2P-E008 2 Way Male Deutsch DT Series Connector With Heat shrink End
Description
2 Way Male Deutsch DT Series Connector With Heat shrink End
It has been adapted to securely accept heatshrink tubing.
Height :17.35mm
Width :17.02mm
Length : 56.03mm
Wire Size (AWG) : 14, 16, 18, 20
Wire Size (mm²) : 0.5-2.0
The DT Series connector provide superior electrical properties and weather resistance in an attractive, economical and user friendly product.
Specification
|
Item name |
DT04-2P-E008 2 Way Male Deutsch DT Series Connector With Heat shrink End |
| P/N | DT04-2P-E008 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

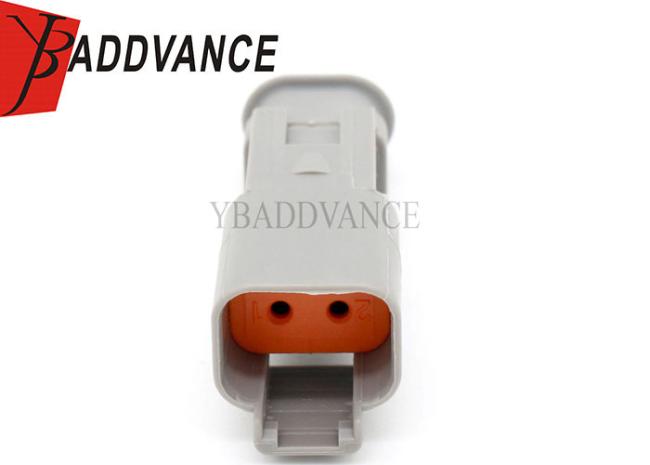

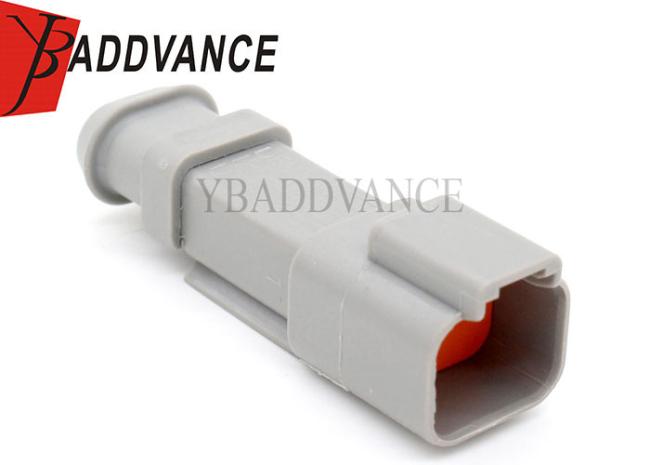

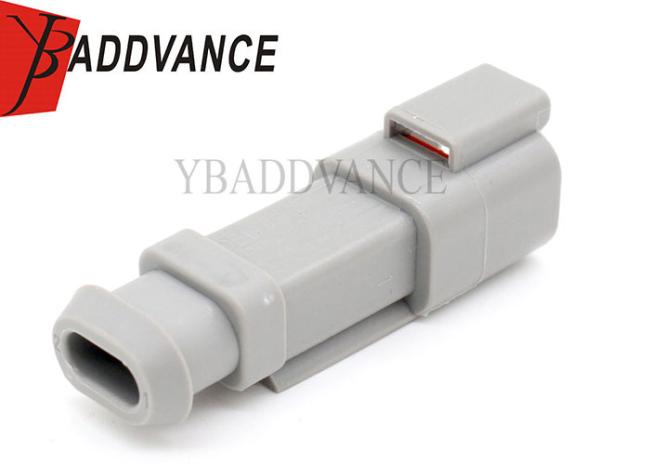

Product Picture Details
