2 Pin Deutsch Automotive Connectors DT06-2S-E008 With Shrink Tube Modification
DT06-2S-E008 2 Pin TE Connectivity Deutsch DT Connector With Shrink Tube Modification
Description
2 Pin TE Connectivity Deutsch DT Connector With Shrink Tube Modification
Deutsch DT series environmentally sealed connectors are the best choice for transportation and racing industry.
Height :16.56 mm
Width :17.37mm
Length : 40.92 mm
Minimum Operating Temperature: - 55 C
The connector is a 2-way Plug Assembly with a gray thermoplastic extended housing for use with the heat-shrink tubing or shrink boot.
It complete with wedgelock and choice of sockets. The housing comes with silicone rubber seal, accepts 12 to 20 AWG wire
Specification
|
Item name |
DT06-2S-E008 2 Pin TE Connectivity Deutsch DT Connector With Shrink Tube Modification |
| P/N | DT06-2S-E008 |
|
Wire Size |
12-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

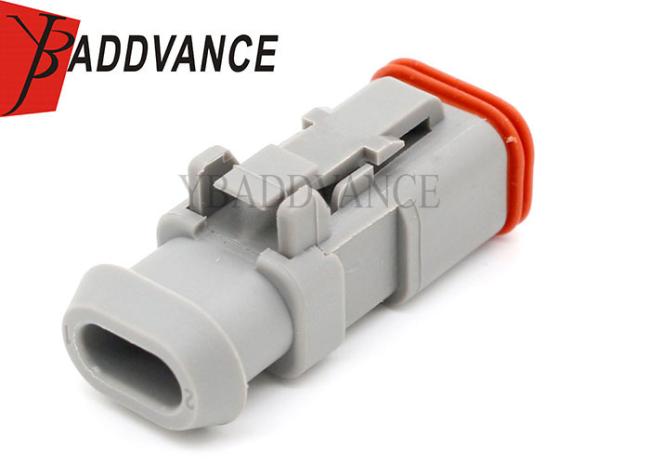

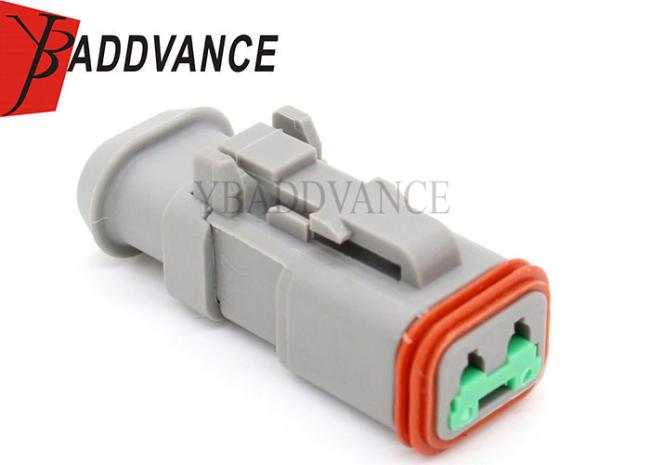

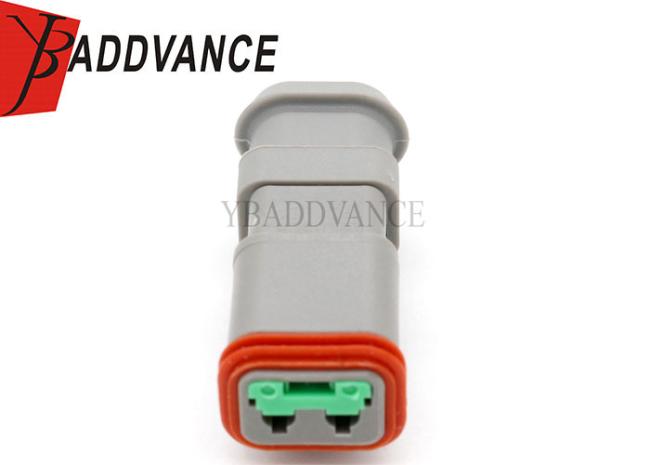

Product Picture Details
