15336024 15336027 2 Way Waterproof Connector / GT-150 3.5mm 2 Pin Sealed Connector
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
15336024 15336027 2 Way GT-150 3.5mm CL Sealed Series Connector
Description
2 Way GT-150 3.5mm CL Sealed Series Connector
Current Rating: 11 A to 15 A
Series: GT-150 3.5mm CL Sealed Series
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
It comes with terminals, seals, and retainer for 20-24 gauge wire
Specification
|
Item name |
15336024 15336027 2 Way GT-150 3.5mm CL Sealed Series Connector |
| P/N | 15336024 15336027 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

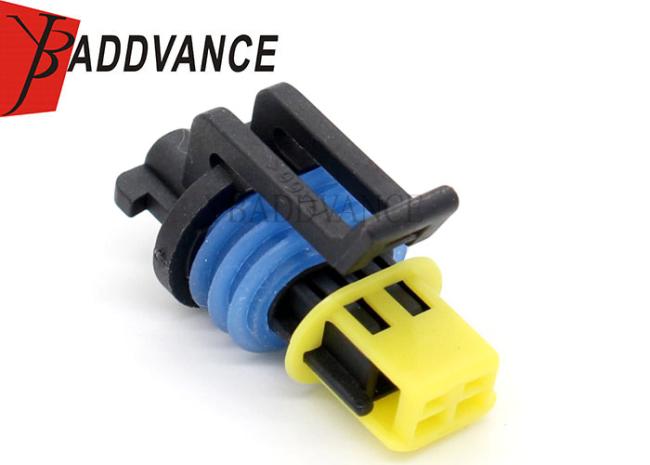

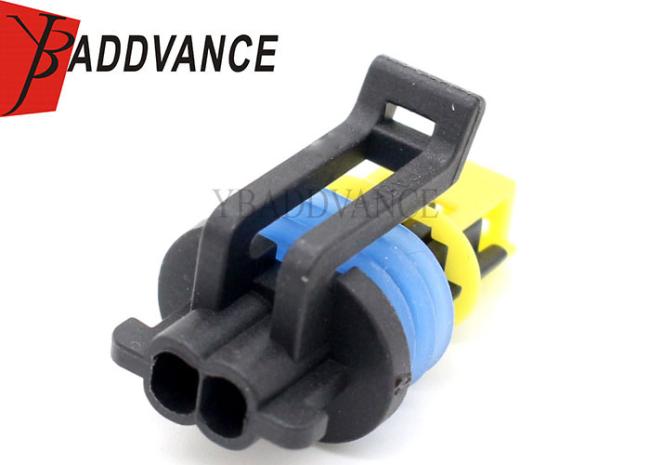

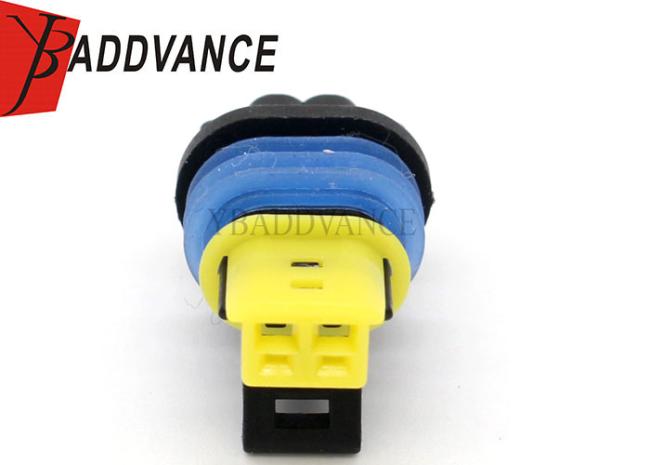

Product Picture Details
