1 Way Male Sumitomo Sealed Connectors MT 090 2.3mm 6187-1171 White Color
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6187-1171 1 Way Male Sumitomo MT 090 2.3mm Sealed Connector
Description
1 Way Male Sumitomo MT 090 2.3mm Sealed Connector
Mating parts: 6180-1181
Height : 13.9 mm
Length : 39.6 mm
Width : 11.4 mm
It including: 1 Housing connector +1 Terminals +1 Seals
High quality with reasonable price , please contact us if you have any concerns
Specification
|
Item name |
6187-1171 1 Way Male Sumitomo MT 090 2.3mm Sealed Connector |
| P/N | 6187-1171 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
1 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 1 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

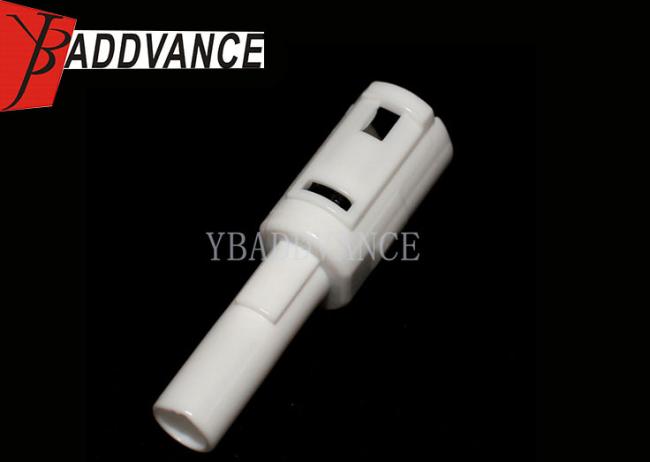

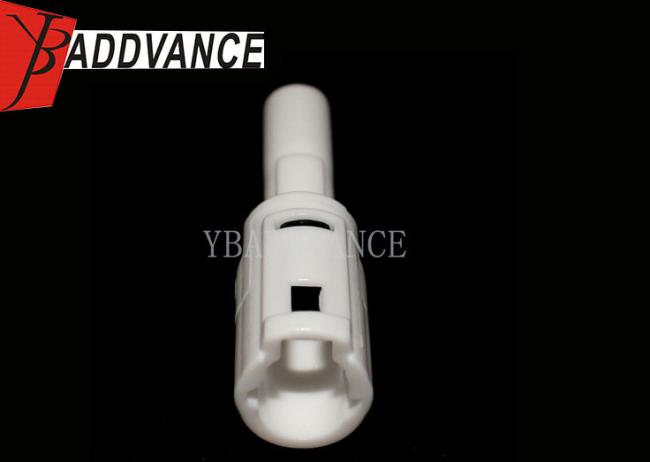

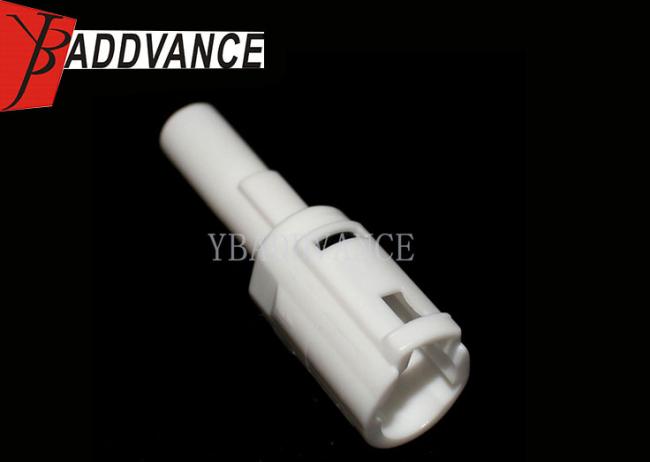

Product Picture Details
