6180-2451 2 Way Sumitomo Automotive Connectors With Terminals HM 090 Series
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6180-2451 2 Way Sumitomo HM 090 Series Connector With Terminals
Description
2 Way Sumitomo HM 090 Series Connector With Terminals
Height:7.1 mm
Width:11.1 mm
Length: 23 mm
Mating parts : 6187-2801
Nylon Connector with inner seal, and Wire seals.
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
6180-2451 2 Way Sumitomo HM 090 Series Connector With Terminals |
| P/N | 6180-2451 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Yellow |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

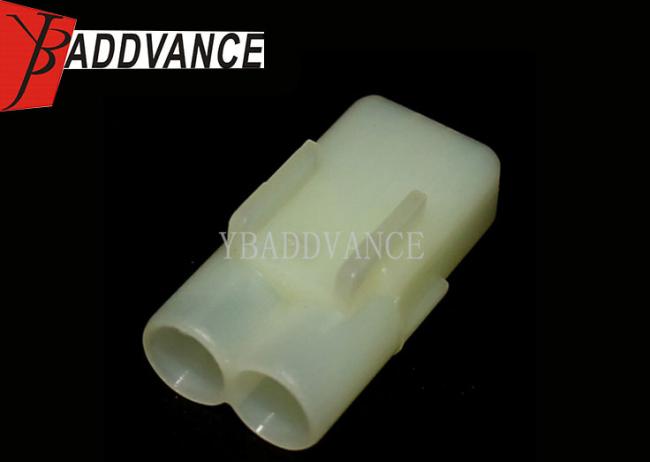

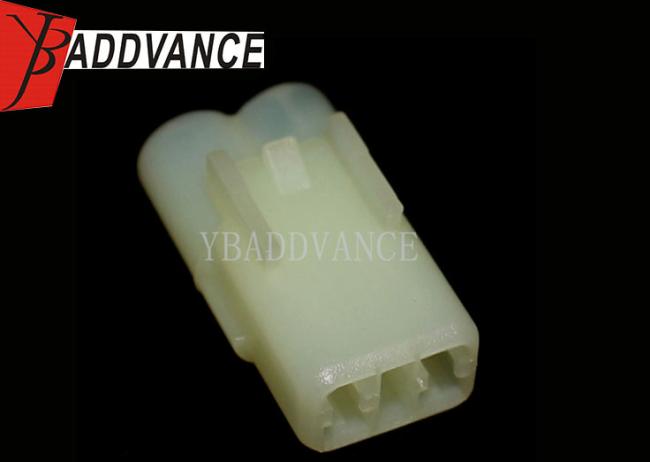

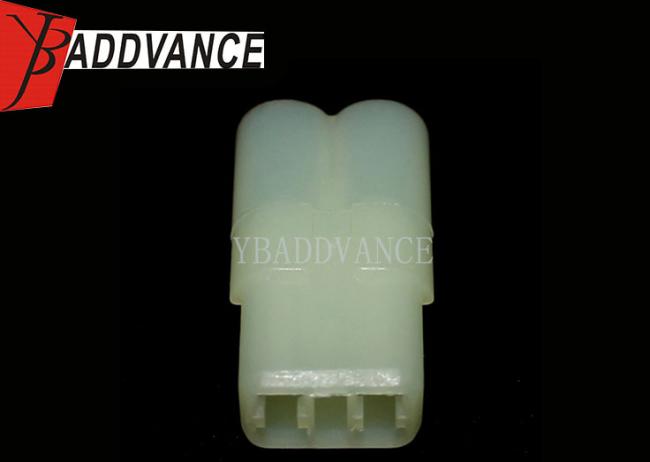

Product Picture Details
