Sumitomo Mt 090 Series 3 Way Connector Female Gender 6180-3451 3 Hole
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6180-3451 3 Way Female Sealed HM 090 Series Sumitomo Connector
Description
3 Way Female Sealed HM 090 Series Sumitomo Connector
Height:7.1 mm
Width:17.1 mm
Length: 23 mm
Mating parts : 6187-3801
Terminal Size: 2.3mm
Number of Rows: 1
The Connector with inner seal, and Wire seals.
Specification
|
Item name |
6180-3451 3 Way Female Sealed HM 090 Series Sumitomo Connector |
| P/N | 6180-3451 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Yellow |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

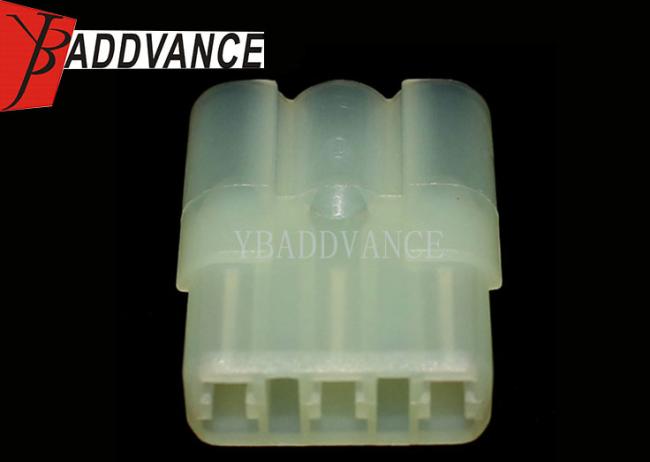

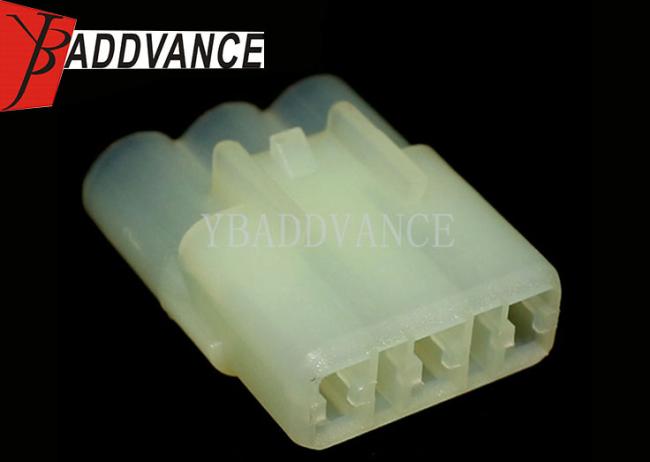

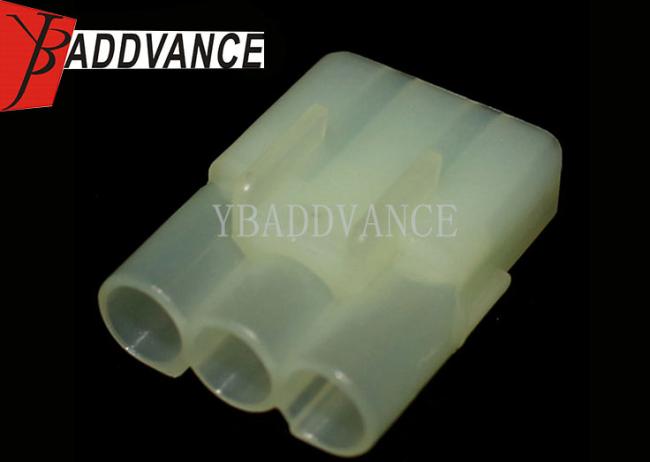

Product Picture Details
