PBT / PA66 3 Pin Sealed Sumitomo Automotive Connectors HM 090 Series 6187-3801
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6187-3801 3 Pin Sealed Sumitomo HM 090 Series Automotive Connector
Description
3 Pin Sealed Sumitomo HM 090 Series Automotive Connector
Pitch: 2.3mm
Height:14.9mm
Width:27.2 mm
Length: 40.2 mm
Mating parts : 6180-3451
Terminals Fit wire size : 0.6 - 1.3 mm (16-22 AWG)
It is oxygen Sensor HM connectors
Specification
|
Item name |
6187-3801 3 Pin Sealed Sumitomo HM 090 Series Automotive Connector |
| P/N | 6187-3801 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Yellow |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

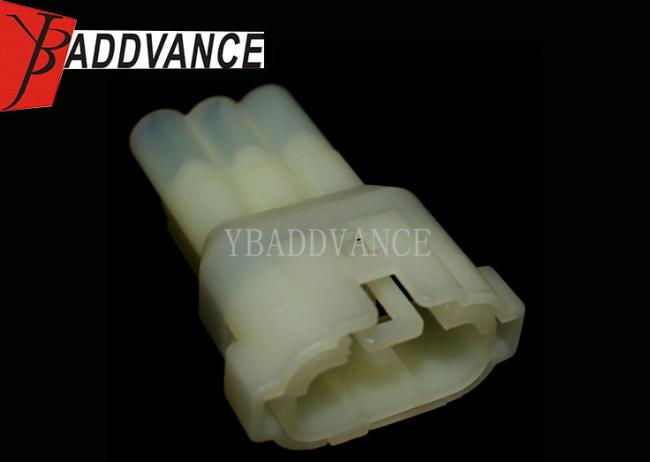

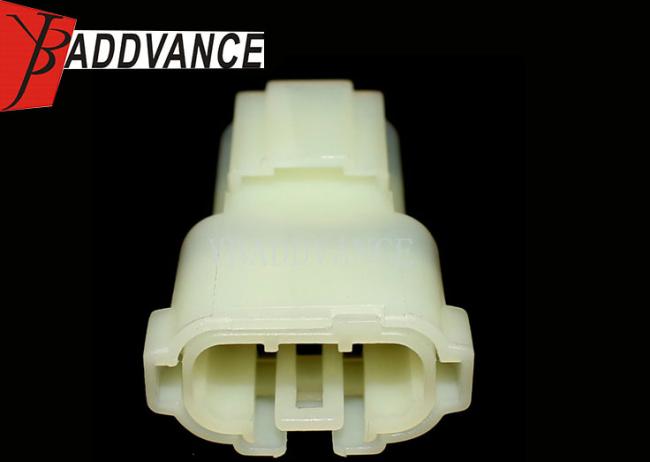

Product Picture Details
