2 Pin Sumitomo Automotive Connectors With Terminals MT Sealed 6187-2171
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6187-2171 2 Pin Sumitomo MT Sealed Motorcycle Connector With Terminals
Description
2 Pin Sumitomo MT Sealed Motorcycle Connector With Terminals
Pitch: 2.3 mm
Height : 14.1mm
Length : 36 mm
Width : 18.6 mm
Mating parts: 6180-2181
The connector has no keying ribs, there is a similar connector with 2 bottom ribs.
Common connector for Y amaha, S uzuki, K awasaki,T riumph, KTM. Sealed 090-2B.
Specification
|
Item name |
6187-2171 2 Pin Sumitomo MT Sealed Motorcycle Connector With Terminals |
| P/N | 6187-2171 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

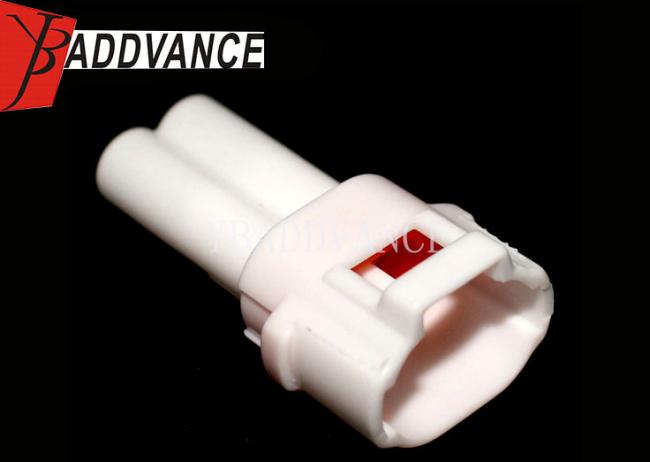

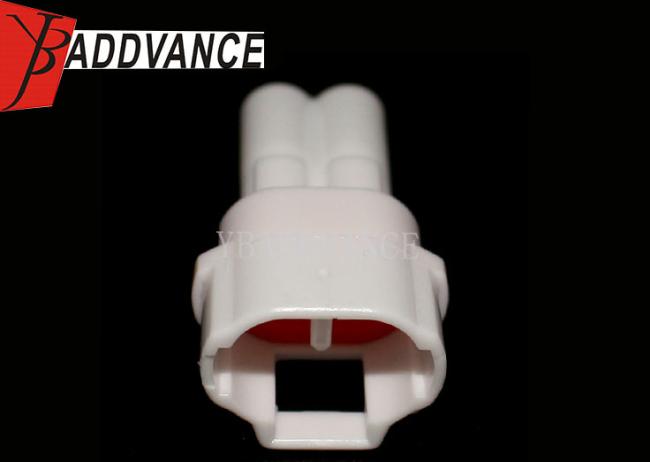

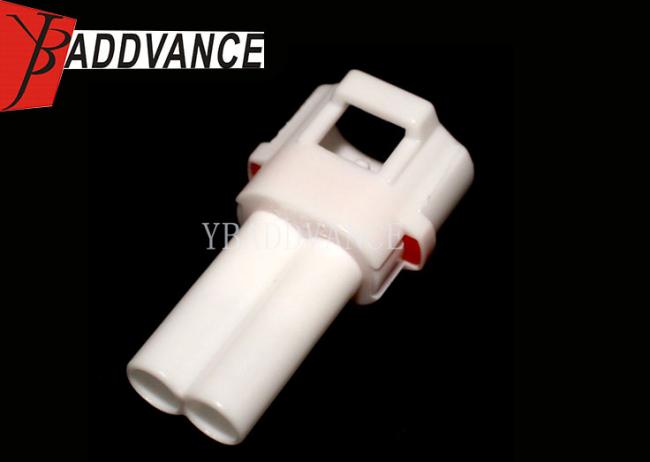

Product Picture Details
