4 Pin HM Series Sumitomo Automotive Connectors With Terminals 6187-4441
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6187-4441 4 Pin HM Series Automotive Connector With Terminals
Description
4 Pin HM Series Automotive Connector With Terminals
Height:20.4 mm
Width:19.7 mm
Length: 36 mm
Mating parts : 6180-4181
Materials:66 Nylon
Contact resistance :Initial:3mΩ Max. after durability tests:10mΩ Max.
Specification
|
Item name |
6187-4441 4 Pin HM Series Automotive Connector With Terminals |
| P/N | 6187-4441 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Yellow |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

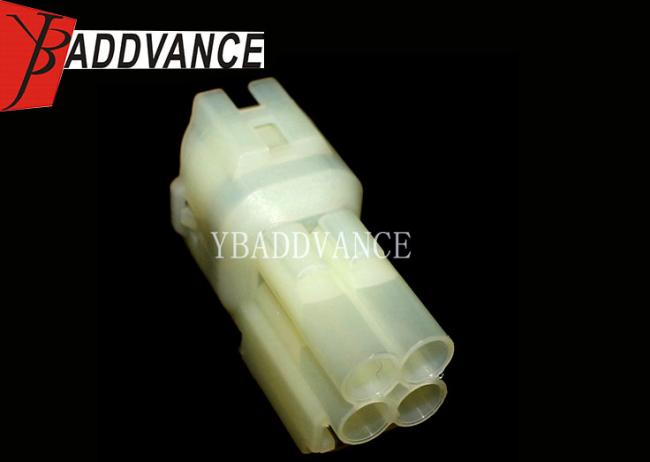

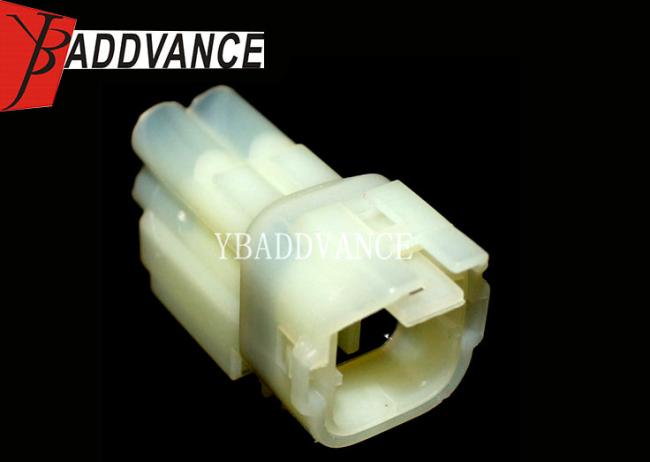

Product Picture Details
