4 Pin Superseal 1.5 TE Connectivity Connectors With Terminals 282106-1 282088-1
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
282106-1 282088-1 4 Pin Superseal 1.5 TE Connectivity Connector With Terminals
Description
4 Pin Superseal 1.5 TE Connectivity Connector With Terminals
Male :
Width : 31.8 mm
Length : 42 mm
Height : 13.8 mm
Female :
Height : 9.3 mm
Width 29.1 mm
Length : 32.2 mm
Wire Gauge (Max):22 AWG
Wire Gauge (Min):14 AWG
Wire Gauge (Max):22 AWG
Wire Gauge (Min):14 AWG
Specification
|
Item name |
282106-1 282088-1 4 Pin Superseal 1.5 TE Connectivity Connector With Terminals |
| P/N | 282106-1 282088-1 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

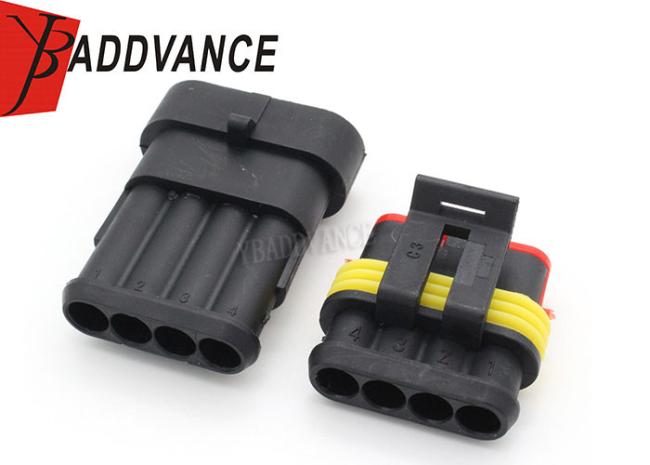

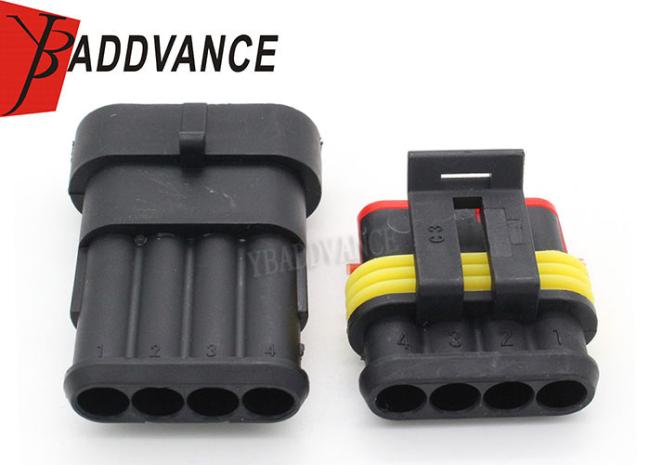

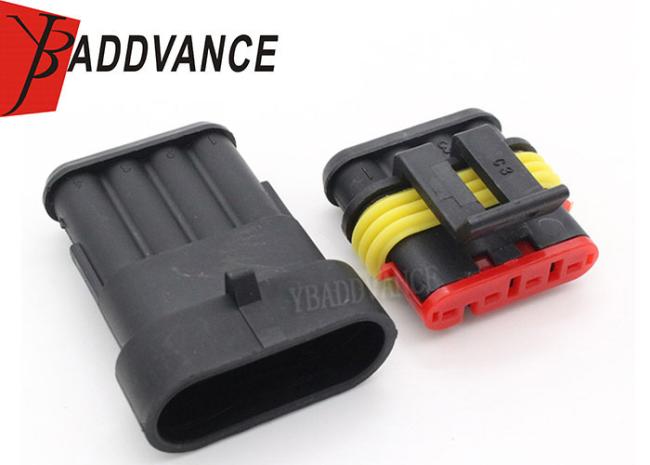

Product Picture Details
